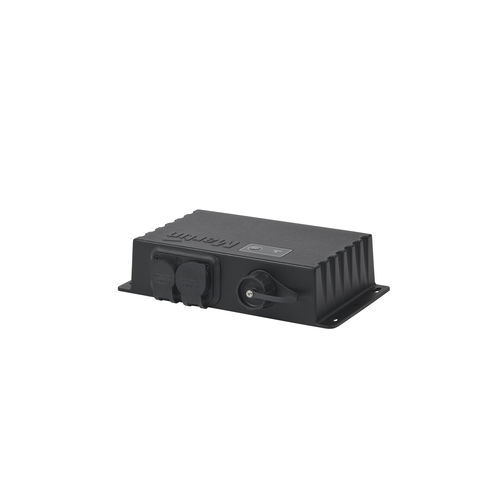

The Martin PDE Junction Box Active merges power, DMX and Ethernet signals into a single connector and cable system, as used by the Martin VDO Atomic family of fixtures.
The unit also features a DMX-thru and Ethernet-thru port, supported by the internal RDM-compliant DMX splitter and 3-port Ethernet switch. The multi-color status LED gives a clear indication of the protocol being received, as it is compatible with DMX, Art-Net, sACN and Martin P3. And, the convenient test button allows all connected fixtures to be tested at once for easy system checking during installation.
The box is fully IP65 rated for outdoor use and features a robust metal housing. The flanges on the side allow for mounting to any surface, while the M10 threaded hole allows for the attachment of a rigging clamp.
powerCON TRUE1 TOP power in & thru
XLR 5 TOP DMX in & thru (build-in DMX/RDM splitter)
etherCON TOP Ethernet in & thru (build-in gigabit switch with fail-safe bypass)
Martin PDE Hybrid output
Status LED to indicate received protocol
Pushbutton to recall test patterns on all attached fixtures
Robust metal housing
Wall or truss-mountable
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver IN/THRU: Opto-Isolated RS-485
DMX/RDM Transceiver OUT: Opto-Isolated RS-485
