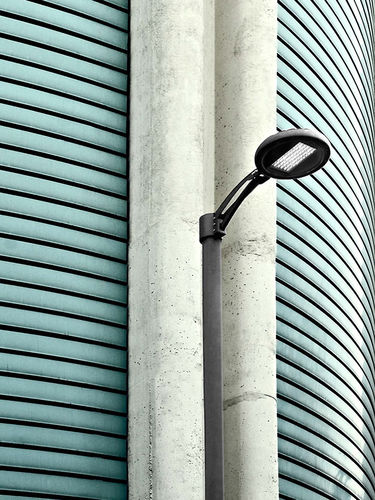

Urban lamp post LEAN

contemporarycast aluminumLED

GENERAL COLOR: anthracite grey NOTES: Class I fixture with built-in surge protection up to 10KV available upon request PRODUCT TYPE: pole mounted fixture/luminaire, pole mounted street luminaire, wall mounted street luminaire, wall mounting fixture ELECTRICAL POWER SUPPLY: electronic POWER SUPPLY MOUNTING: integral VOLTAGE (V): 220/240 POWER FACTOR: > 0,9 DIMENSIONS DIAMETER (MM): 500 LENGTH (MM): 573 HEIGHT (MM): 150 LAMPS COLOR RENDERING (RA): 80 LAMPS DESCRIPTION: LED NUMBER OF LAMPS: 36 COLOR TEMPERATURE (K): 3000 LUMINOUS FLUX: 5106 POWER (WATT): 90 OPTICAL OPTICAL BEAM: Street Optic LIGHT EMISSION: direct PHYSICAL MOUNTING: Earth, street, Wall BODY: Die-cast aluminium MAX. SURFACE AREA EXPOSED TO WIND (M²): 0.073 WEIGHT (KG): 12.5 CLASSIFICATION FLAMMABILITY: F INSULATION CLASS: class II IP RATING: IP65
