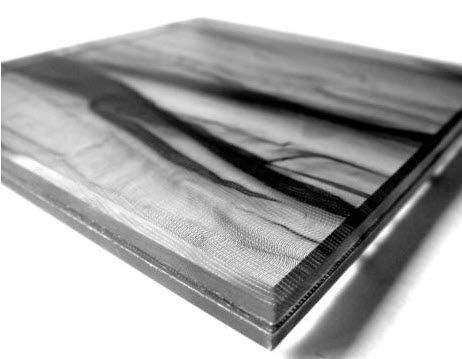

laminated glass panel / patterned / for interior / with textile insert
with textile insert, translucent
Maximum panel size: 2150mm x 5000mm
Thicknesses: This will be determined by the size of
the panel and its application.
Type of glass: Most laminated glass is specified in
clear float glass as this is less expensive than low iron
glass. However, for certain colours like yellow, orange
and red and for the lighter coloured fabric laminates,
the green tint in clear float glass effects the clarity of
the colour. In this situation, we advise that low iron
glass is specified.
Cut-outs/notches/holes: Laminated glass can be
processed as any other standard glazing, however, the
glass will have to be toughened if cut-outs, notches or
holes are required.
Edge detail: Laminated glass can be processed as
any other standard glazing: however, the glass will
have to be toughened if cut-outs, notches or holes are
Safety: Laminated panels conform to BS6206.
Fabric laminates: We can laminate a wide variety of
fabrics. The fabric is sandwiched between layers of
clear PVB/EVA. to add texture, colour and pattern to
laminated glass. We have a range of standard fabric
