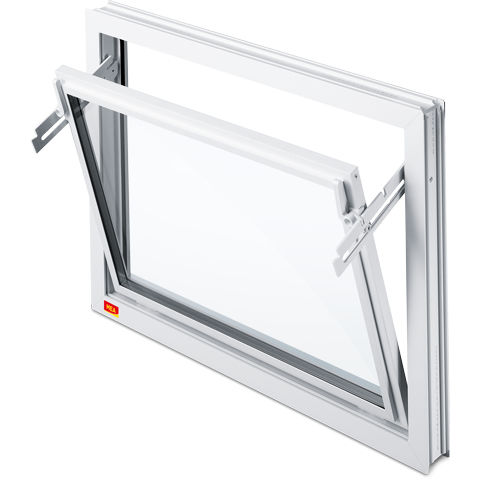

Casement window MEALON

glassmetal1 leaf

Light well window: Complete window, white, with a stop on the right or left (DIN R or DIN L) Ventilation windows with thermal insulation glazing for installation in existing openings Concealed one-hand turn-tilt hardware (Roto NT with basic security) Sound insulation class 2 (30 - 34 dB) TPE seal and glass retaining strips Modern design in living space quality Electronic and manual special opening mechanisms possible MEALON turn-tilt Premimum: 7-chamber profile (82 mm frame thickness), security fitting, thermal insulation glass, Ug = 0.7 W/m² K (Uw = 1.0 W/m²K), three circumferential sealing levels with center seal on frame and sash MEALON turn-tilt Komfort: 5-chamber profile (70 mm frame thickness), thermal insulation glass, Ug = 1.1 W/m² K (Uw = 1.3 W/m²K) MEALON tilt-only windows: optionally with insulating glazing 14 mm (Ug = 3.3 W/m²K) or 24 mm (Ug = 3.0 W/m²K) or single glazing (Ug = 5.6 W/m²K) Complete window for moisture-insensitive rooms, white Surrounding TPE seal and anti-unhinge feature Frame thickness 70 mm MEALON plastic windows were developed for installation in basements and garages as well as industrial and agricultural buildings. MEALON windows are equally suitable for new or refurbished buildings and can be supplied with either tilt-only or tilt-and-turn opening. They can therefore be optimally adapted to any construction project. The MEALON tilt-and-turn range is offered in two different designs: MEALON PREMIUM and MEALON KOMFORT. Complete window, white, closing to the left or to the right (DIN L or DIN R) Thermally insulated glass Concealed, one-hand tilt-and-turn handle (ROTO NT with basic security) Sound insulation class 2 (30–34 dB)
