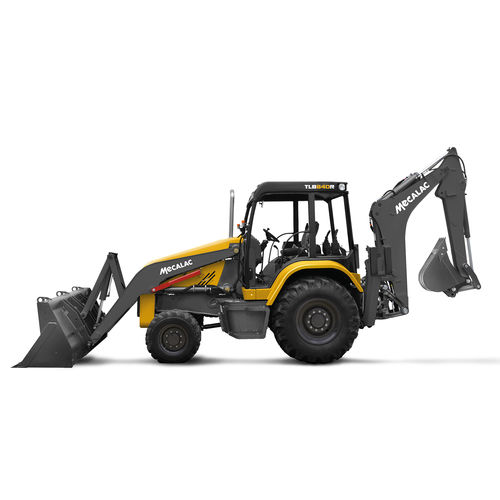

Ergonomic backhoe loader TLB840R

frontmulti-functionstandard

Designed with the rental market in mind the TLB840R features a powerful 55kw (74hp) Tier 4 Final / Stage IIIB engine with 390Nm (288lbf) of torque. Synchro shuttle transmission offers travel speeds of up to 38km/h (23mph) enabling quick transit between worksites. The curved excavator boom increases versatility when working in confined spaces where loading trucks close to the machine or working over objects is essential. Servo excavator controls with SAE/ISO changeover switch ensures any operator can become comfortable in a short space of time. The front loader features a 1m3 bucket as standard, high bucket tearout and lift heights make loading tasks quick and simple when combined with it's class leading turning circle of 7.9m! FEATURES Total operating weight (kg)7320 Overall width (mm)2310 Turning circle (mm)7900 Travel speed (km/h)38 Engine power (kW/hp)55/74 Hydraulic SystemOpen Centre Pump Flow (l/min)128 Tear-out force / Loader (daN)4600 Break-out force / Loader (daN)4200 Lift capacity @ Max Height (kg)3759 Lift height / Loader (mm)3401 Max. reach (mm)6670 Max. depth (mm)5438 Tear-out force / Excavator (daN)3540 Break-out force / Excavator (daN)5400
