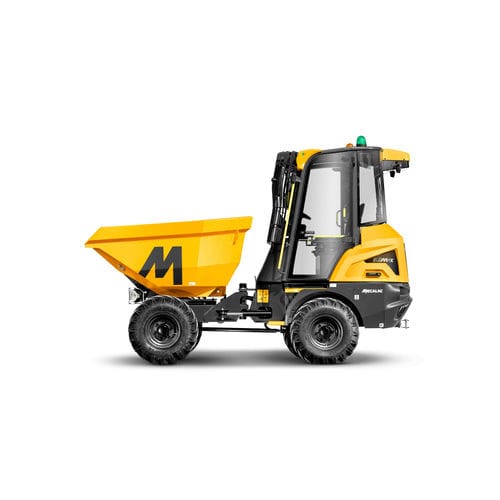

Rear unloading dumper 3.5MDX

wheeledfor constructiondiesel

PERFORMANCES: The 3.5MDX is a compact and manoeuvrable machine, providing an effective solution in carrying high payloads in confined spaces, any ground conditions and for a large variety of applications. COMFORT: This new model adopts Mecalac’s proven MDX cab with optional Air-conditioning to provide an outstanding level of operator well-being in any weather conditions. Like all MDX models, the unique cabin layout minimises vibration and noise, while ergonomic controls and an adjustable seat provide a relaxed environment when working for extended periods. SAFETY: Alongside the cab conforming to ROPS/FOPS, safety has been prioritised by incorporating MDX design characteristics which results in easier and safer access to the machine, outstanding all around visibility and a higher level of operator protection in any situation. FEATURES Total operating weight - 2915 kg (6,426 lb) - Payload (Kg) - 3500 kg (7,716 lb) - Overall width - 1846 mm (6 ‘0‘’) - Overall length - 4012 mm (13‘1‘’) - Overall height - 2800 mm (9‘2‘’) - Travel speed - 20 km/h (12 mph) - Engine power (kW/hp) - 37 kW (50 hp) - Stage V - Transmission - Hydrostatic - Maximum skip capacity (Heaped) - 1.88 m3 - Operators environment - Cab ROPS/FOPS - Dumping height (Skip tipped) - 841 mm (2‘9‘’)
