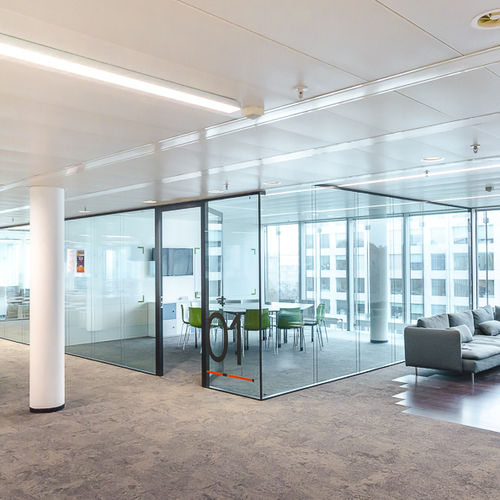

Transparency and fluidity are the primary assets of Edge to Edge Evidence.
With solid panels, the absence of joint covers brings a clean line to the final project.
The Glazed version plays on the transparency of the spaces without neglecting its acoustic role.
It is possible to mix the solid and glazed panels on the same project.
SPECIFICATIONS
. Thickness 76 mm compatible with 72/48 gypsum boards
. Height: up to 3600 mm
. Anodized or lacquered powder coated
. Simple or doubled glazed from 6 à 8 mm (clear glass, laminated glass, sandblasted sheet
glass, security)
. Melamine or steel panels
Acoustics
Solid Panel: Rw (+c) from 38 to 48 dB
Glazed Panel: Rw (+c) from 42 to 48 dB
