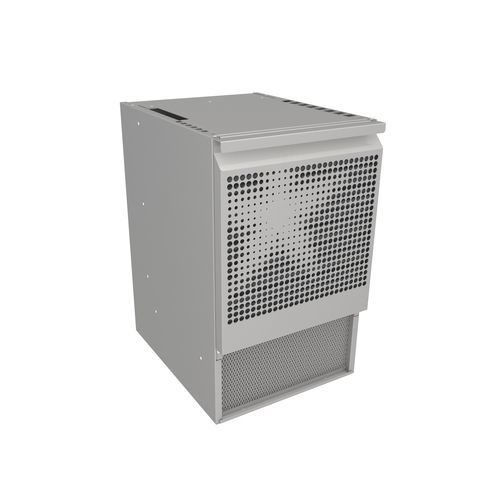

Floor-standing electrical cabinet 4178

commercialequipped

Overview
Background technology for modular cooking suites, integrating induction power modules, electrical distribution and plumbing routing. Designed for easy maintenance, centralized connections and reliable cooling of power electronics.

Benefits

• Induction foot
• Electrical cabinet with control options
• Master switch
• Plumbing compartment
• Centralized wiring in the cooking suite
• Cable ducts for secure routing

Advantages / Details

• Induction foot
  For induction generators with a separate air filter for electronics cooling. Removable without tools and splashproof. Generators mounted on guide rails for quick removal and maintenance. One generator supplied per hob. Temperature monitoring of power electronics. Washable stainless-steel grease filter, easy to dismantle. Optimized cooling air routing to avoid short-circuiting.
• Electrical cabinet
  Junction box separated into electrical and plumbing areas. All wiring and piping pre-installed to minimise on-site work. Electrical connections routed to a central junction box. Screw-on side wall with locking system. Options: with terminals or with electrical board.
• Master switch
  Lockable maintenance switch providing all-pole disconnection with indicator light (illuminated when the cooking suite is de-energised). Directly disconnects the power supply to the cooking suite.
• Plumbing compartment
  Dedicated compartment for water installations, routed to the cooking suite plumbing area for organised service access.
• Wiring and cable ducts
  All electrical and control connections routed to a central point. Cable ducts ensure secure, durable routing and simplified maintenance.

Technical specifications

• Induction foot - Dimensions:
  250 x 450 x 560 mm
  350 x 450 x 560 mm
  350 x 250 x 560 mm
• Electrical cabinet - Options: with terminals / with electrical board
• Master switch - Lockable maintenance switch for all-pole disconnection; indicator light (on when de-energised)
• Plumbing compartment - Water installations routed to the dedicated plumbing compartment
• Wiring / Cable ducts - Centralised wiring point; secure, durable cable ducts
