fire resistance class:
mcr TLB EI 60: EI2 60
mcr TLB EI 120: EI2 120
material:
panels constituting the leaves of the gate are made of galvanised steel sheet, and covered with foil to protect the gate against damage during transportation and installation.
colour:
any colour from the RAL palette
additional information:
sliding gates are usually designed to be permanently open unless a fire breaks out; then they are closed as a result of the effect of counterweight. The gate is kept in this position by an electromagnetic hold connected to the fire alarm system. The gates can be fitted with electric motors which automatically open and close them during normal use. To facilitate foot traffic, for example in production halls, the gate may be fitted with steel fire door of the mcr ALPE type.
ITB Technical Approval AT-15-7388/2007

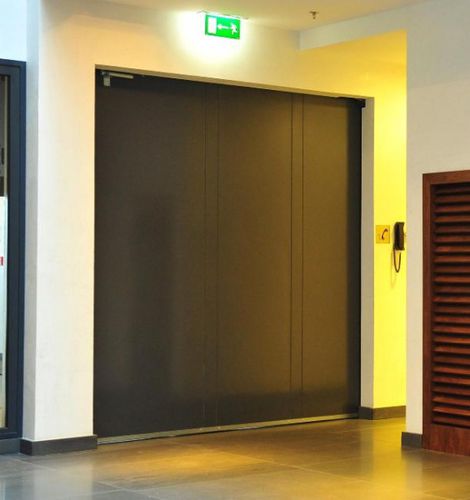

Sliding steel fire gates of the mcr TLB type
Certificate of Conformity ITB-1639/W
Sliding steel fire gates of the mcr TLB type
