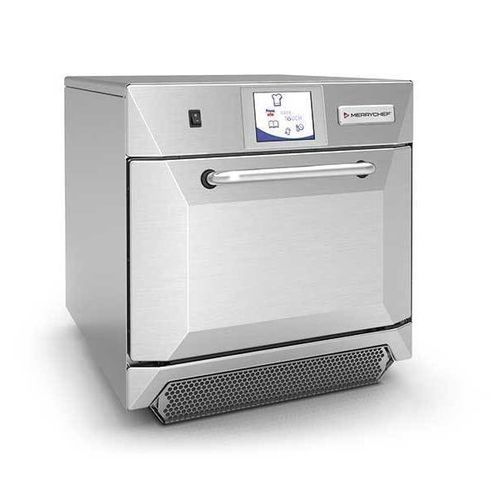

Catering oven EIKON® E4S

electriccombiconvection

Overview
The Merrychef eikon® e4s is a high-speed combination oven designed for high-turnover food production in quick-service and catering environments. It cooks a wide range of products — from 14" pizzas to toasted subs — with repeatable results and a throughput up to 15x faster than a conventional oven.

Operational benefits

• Pre-programmed menus and the easyTouch® icon-driven touchscreen simplify operation for untrained staff and reduce errors
• Icons and automated programs help limit food waste and ensure consistent portioning
• Ventless operation facilitates installation in locations without external extraction

Features

• Accelerated Cooking Technology® combining Convection, Microwave and Impingement heat methods
• Easy-clean cavity design
• Cool-to-touch door exterior for safer handling
• Built-in diagnostic testing for maintenance support
• Rapid cooking up to 15x faster than a conventional oven
• Easy-access front monitored air filter
• Quiet operation — max noise level < 46 dBA (idle)
• Standby energy consumption approximately 0.724 kWh

Accessories (examples shown)

• Solid base tray full size — Part Number: 32Z4086 — H25 x W343 x D343 mm
• Mesh tray full size — Part Number: 32Z4054 — H25 x W343 x D292 mm
• Non-stick roasting tray liner — Part Number: DX0254 — W277 x D236 mm
• Vitreous baking/roasting tray — Part Number: DX0117 — H25 x W321 x D297 mm
• Non-stick baking/roasting tray — Part Number: 40H0230 — H15 x W300 x D271 mm
• Paddle with hand guard and sides — Part Number: SR320 — W328 x D311 mm
• Paddle without sides — Part Number: SR310 — W328 x D311 mm
• Flat cook plate — Part Number: DV0870 — H25 x W371 x D355 mm
• Cook plate ideal for pizzas — Part Number: DV0880 — H25 x W371 x D355 mm
• Griddled cook plate — Part Number: DV0860 — H26 x W360 x D305 mm
• Wire rack — Part Number: PDV0908 — H36 x W366 x D344 mm
• Cool down pan — Part Number: 32Z4028 — 1/2 size 100 mm deep
• Tray handle for use with DX0117 — Part Number: SR313 — H25 x W264 x D91 mm
• Moveable oven trolley — Part Number: 40H0098 — H1200 x W700 x D690 mm

Technical specifications

• Model: eikon® e4s
• W x D x H: 22" x 29½" x 23¼" — 55.9 cm x 74.9 cm x 59.1 cm
• Weight: 182 lb / 82.6 kg
• Power input type: Electric
• Primary power input: 230 V x 50 Hz x 1 PH
• Certifications: ETL, CUL, CE
• Max noise level (idle): < 46 dBA
• Standby energy consumption: ~0.724 kWh
• Key technology: Accelerated Cooking Technology® (Convection, Microwave, Impingement)
