Power socket M-PURE-RAHMEN

radioUSBmultiple

Product
System M - switch program / configurator for modular frame and insert combinations. This page presents the System M configurator product with examples such as M‑Pure frames and a wide range of inserts (e.g. SCHUKO socket with USB, rocker switches, sensor and module variants).

Example display (elements shown on the page)

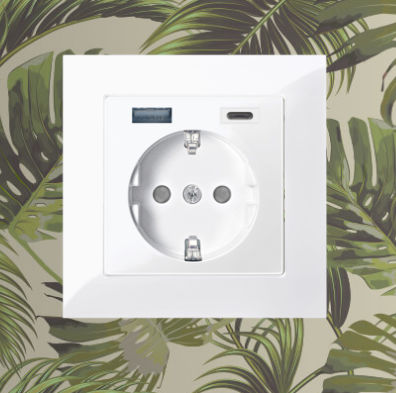

• M‑Pure frame, 1‑gang, active white (display example: MEP4010-3625)
• SCHUKO socket with USB charger (display example: MEG2367-0325)

Selection of available frames (excerpt)

• M‑Pure frames (multiple variants)
• M‑Pure Decor frames
• M‑Plan (e.g. M‑Plan glass / real glass frames, M‑Plan real wood, M‑Plan metal)
• M‑Smart
• M‑Plan metal frames
• M‑Smart and M‑Pure variants in multiple finishes

Selection of inserts / functions (excerpt)

• SCHUKO sockets (various versions)
• SCHUKO socket with USB charger (example article: MEG2367-0325)
• SCHUKO socket with light outlet / LED illumination module
• SCHUKO socket with surge protection and labelling field
• Rockers, rockers for roller-shutter switches and pushbuttons, rockers with indicator window
• Central plates for various inserts (e.g. USB charging module, UAE insert, rotary knob)
• Connected inserts: Connected SCHUKO socket 16A System M, Connected room thermostat modules
• ARGUS sensor modules (e.g. ARGUS 180 UP sensor module)
• Timer module
• KNX Multi-Touch Pro, room controllers with switch and central plate
• DAB+ radio set

Configurator note
The page functions as a switch configurator for System M: frames and inserts can be combined to create customised product variants. The configurator visualises numerous frame variants and a large selection of inserts and modules (examples and article numbers are shown in the configurator).

Technical specifications

• Brand: Merten
• Product range / commercial name: System M
• Example frame: M‑Pure frame 1‑gang, active white (display example: MEG4010-3625)
• Example insert: SCHUKO socket with USB charger (display example: MEG2367-0325)
• Modular design: combination of frame + insert/module
• Available functions: socket variants, USB charging, surge protection, sensor modules (ARGUS), KNX/Connected modules, lighting/LED modules, timer modules, multitouch/controller modules
• Product type: configurator / modular system (frames + inserts)
