Push-button 617125
Add to favorites
Compare this product
Description
Product description
Product figures
Main documents (short info, download links not listed)
Compatibility
Characteristics / technical specifications

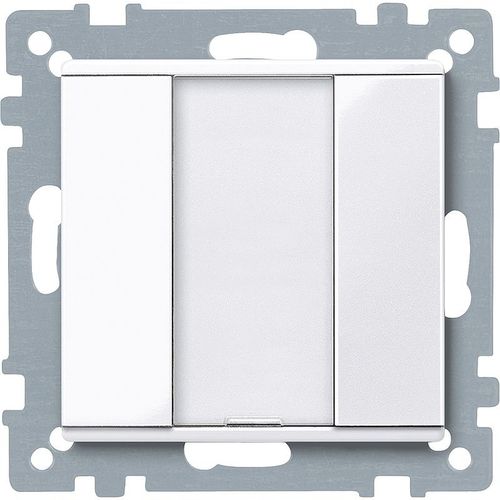

- Flush-mount push button (1-gang) from the System M switch program, version: Taster 1fach plus.
- Color: active white, glossy plastic surface with antibacterial treatment.
- Local signalling via LED.
- Compatible with KNX/SpaceLogic KNX (building automation / KNX system electronics).
Product figures
- Article number / reference on the page: 617125
- EAN code: 4042811047214
- Recommended retail price: €107.50 (excluding VAT; details on the page)
- Manufacturer / Brand: Merten (part of the Schneider Electric group)
- Material price group: X7
Main documents (short info, download links not listed)
- Product data sheet
- Declaration of Conformity (Sustainability) / REACh statement
- EU-RoHS declaration
- User guide / instruction manual
- Environmental Disclosure / Product Environmental Profile
- Circularity Profile / End of life instructions
- Certificate / Antibacterial Declaration
- Catalogue (Merten catalogue)
Compatibility
- Product page lists compatible software and KNX products (e.g. eConfigure KNX lite) and compatibilities within the KNX product family.
Characteristics / technical specifications
- Series: SpaceLogic KNX
- Product or component type: Push button
- Bus type: KNX
- Short product name: KNX / push button (KNX Push Button)
- Main colour: active white
- Housing variant: Flush-mount
- Number of function keys: 2
- Local signalling: LED
- Marking position: Marking on the labelling holder
- Material: Plastic, glossy
- Surface treatment: Antibacterial
- Device representation: Mechanism with mounting frame and cover plate
- Protection rating (IP): IP20
- Packaging units: PCE 1 = 1 piece; CAR 2 = 60 pieces
- PCE 1 - packaging weight: 66,000 g (page information)
- PCE 1 - dimensions (H x W x L): 4,400 cm x 7,400 cm x 7,900 cm (page information)
- Contractual warranty: 18 months
- Other: Take-back possible; WEEE disposal note (EU markets)
