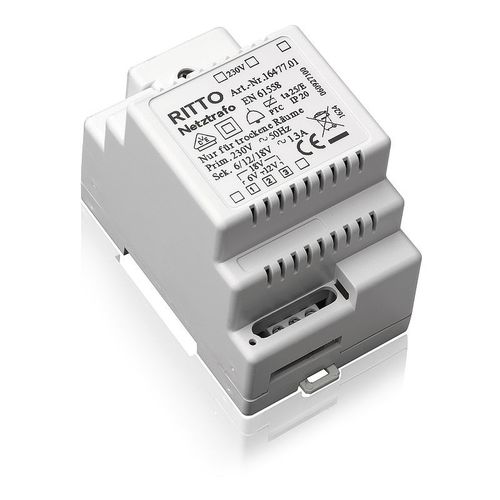

AC/AC power supply 1647701DIN railmultiple-outputfor CCTV cameras
Add to favorites
Compare this product
Characteristics
- Type
- AC/AC
- Installation
- DIN rail
- Output
- multiple-output
- Applications
- for CCTV cameras
- Input voltage
Max.: 230 V
Min.: 230 V
- Output voltage
Max.: 18 V
Min.: 6 V
- Current
1.3 A
Description
Product overview
Mains transformer REG, item number on the page: 1647701. Recommended retail price shown on the product page: 68.30 € (tax information not specified).
Short description
Packaging & logistics
Sustainability / environmental data (excerpt)
Technical characteristics / specifications
Mains transformer REG, item number on the page: 1647701. Recommended retail price shown on the product page: 68.30 € (tax information not specified).
Short description
- Series: TwinBus power supply
- Product / component type: Mains transformer
- Intended use: Power supply for video door stations and cameras
Packaging & logistics
- Packaging unit 1 (VPE 1): 1 piece per pack
- Gross packaging weight: 494 g
- Packaging unit 2 (VPE 2): 20 pieces per loading unit, weight: 10.656 kg
Sustainability / environmental data (excerpt)
- Mercury-free: Yes
- Take-back possible: Yes
- Total lifecycle carbon footprint: 690 kg CO2 eq.
- Carbon footprint — manufacturing phase (A1–A3): approx. 4 kg CO2 eq.
- Carbon footprint — distribution phase (A4): approx. 0.1 kg CO2 eq.
- Carbon footprint — installation phase (A5): approx. 0.1 kg CO2 eq.
- Carbon footprint — use phase (B2,B3,B4,B6): approx. 685 kg CO2 eq.
- Carbon footprint — end-of-life (C1–C4): approx. 0.7 kg CO2 eq.
- Recyclability potential: 4 %
- PVC-free: Yes
- Halogen-free product: Yes
- WEEE note: Product must be disposed of according to applicable EU market requirements and must not be disposed of with household waste.
Technical characteristics / specifications
- Series: TwinBus power supply
- Product purpose / area of application: Video door stations and cameras
- 18 mm units: 3
- Rated operating voltage (UH,nom): 230 V AC, 50 Hz
- Power consumption: 27 VA
- Output voltage: 6 / 12 / 18 V AC @ 1.3 A
- Protection / safety measure: Thermal fuse
- Connections: Screw terminals
- Mounting: DIN-rail
- Width: 54 mm
- Height: 90 mm
- Depth: 60 mm
- Product weight: 0.467 kg
- Packaging unit (VPE 1): 1 PCE
- Warranty: 18 months
- EAN: 4026529008736
- Recommended price (displayed on page): 68.30 € (price shown as a non-binding recommendation)
