Security bollard GENESIS

stainless steelgalvanized steelpainted steel

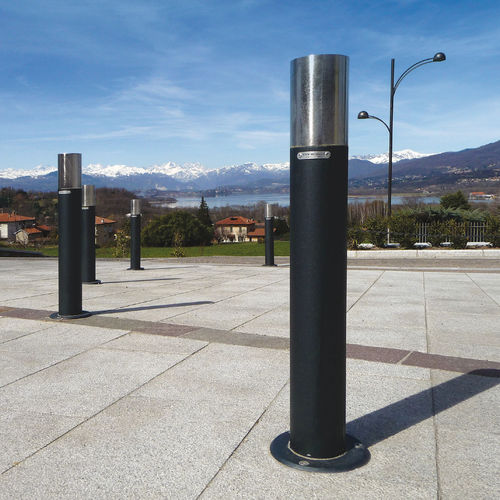

The GENESIS bollard is available in 3 sizes: Ø 76 mm, 800 mm high, Ø 102 mm, 700 mm or 1000 mm high and Ø 168 mm, 600 mm high. The lower part of the bollards are made of hot galvanised and polyester powder coated steel, whilst the upper part, 150mm high, are electropolished stainless steel. The connection between the two parts is mechanic, with the characteristic of having no visible screws. Pre-drilled for anchors or below ground installation The GENESIS barrier is made up of vertical modular Ø 102 mm Genesis elements; the lower part of the bollards is made of hot galvanised and polyester powder coated steel, whilst the upper part, 150mm high, is electropolished stainless steel. The vertical post elements, 1500 mm apart, are solidly connected together with galvanised and polyester powder coated steel tubes, mechanically fixed with the appropriate fixings and a stainless steel rope, arranged in a “X” in between the two supports. Pre-drilled for anchors or below ground installation. The Genesis barrier can be assembled on inclined levels up to the following values: 8 % slope, minimum curve radius: 11 metres. All fixings are in stainless steel. Dimensions: H =1000 mm, H bar = 850 mm L =1500 mm. Powder coated steel + Stainless steel
