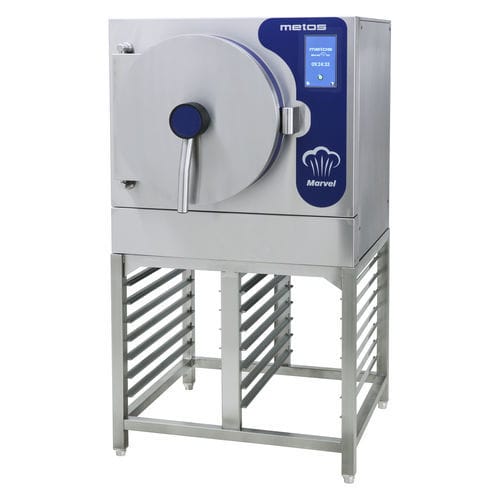

Commercial kitchen combi steamer MARVEL TE1 + GN

electricconvectionfree-standing

Description
Intelligent Metos Marvel TE1 pressure steamer is designed for professional kitchens to cook, defrost and regenerate a wide range of products. It provides gentle steam cooking that preserves texture, nutrients and color. The unit requires no preheating for many tasks and allows simultaneous cooking of different items without flavor transfer.

Operation and control
Exact temperature control with 1°C precision. Optional PT1000 core temperature probe for internal temperature monitoring and Delta-T cooking. Cooking range 40–120°C (40–80°C low-temperature/thaw, 80–100°C normal, 100–120°C express pressure). Two preset pressure selections: 0.5 and 1.0 bar.

User interface
Large, colored touch screen with clear display of compartment temperature, optional core probe temperature and remaining time. Intuitive touch symbols, quick favorite program list and ability to save user programs. Memory for up to 10,000 programs. Timer 0–99 h with 1 s precision.

Safety and maintenance
Advanced door locking prevents opening under pressure or during a running program. Ergonomic insulated handle operable with one hand. Multiple adjustable alarms, diagnostic functions and automated safety valve testing. Front USB port for program update and HACCP data export. Design enables maintenance access from front or top.

Key product features

• Completely stainless steel construction; chamber of acid resistant steel
• Removable rounded stainless steel guide rail rack with 6 rail pairs, machine washable
• Capacity: 4 × GN1/1-65 mm (guide distance 103 mm) or 3 × GN1/1-100 mm (guide distance 128 mm)
• Top loading height: 1280 mm with GN rail stand; 1490 mm with Duo or Universal stand
• Free standing; multi-language interface
• Large touch screen; preset buttons for 0.5 and 1 bar
• Optional core temperature probe and Delta-T cooking
• Adjustable alarms with variable sound level and duration
• On-board user guide; display power save and screen lock
• Front-mounted integrated USB for programs and HACCP data
• Automated boiler rinsing and safety valve testing; diagnostic alerts

Delivery includes

• Removable guide rail rack
• GN 14-rails stand

Options

• Duo Stand – for second Marvel TE1, combi steamer or blast chiller
• Universal Stand with shelf – for smaller combi steamer, convection oven or blast chiller
• Duo Junction Box – for second Marvel TE1, on top or beside
• PT1000 food core temperature probe

Factory options

• Reel-in hand-shower
• Double water connection
• High power heating

Technical specifications

• Weight: 175.0 kg
• Dimensions: 800 × 970 × 1460 mm
• Capacity: 4 × GN1/1-65 or 3 × GN1/1-100
• Material: Stainless steel; chamber of acid resistant steel
• Guide rail rack: removable rounded stainless steel with 6 rail pairs, machine washable
• Top loading height: GN rail stand 1280 mm; Duo/Universal stand 1490 mm
• Cooking range: 40–120°C (40–80°C low-temp/thaw, 80–100°C normal, 100–120°C express pressure)
• Cooking control: 1°C precision; optional core probe; Delta-T cooking (with probe)
• Programs: Memory up to 10,000; timer 0–99 h (1 s precision); favorites
• Controls/display: Large color touch screen; multi-language; front USB for programs/HACCP
• Safety/maintenance: Advanced door lock; automatic safety device testing; diagnostics; maintenance from front or top
• Electrical: 400/230 V, 32 A, 22.5 kW, 3NPE, 50 Hz
• Water/drain: Cold water 1/2"; Drain ø32
