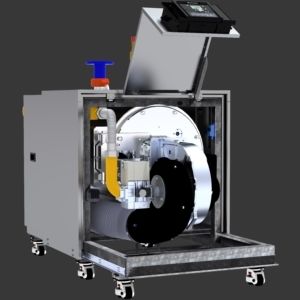

Gas boiler ULTRABOX

mobilecommercialindoor

MHG’s new Ultrabox 2020 commercial condensing boilers Low NOx (22mg/kWh) gas-fired Ultrabox 2020 commercial condensing boilers in capacities from 170kW to 1330kW, with cascade capabilities for up to 16 units. Ultrabox 2020 commercial condensing boilers feature a fuel engineering related efficiency of up to 110% and 15:1 turn down capability and are suitable for a wide range of flow rates with low pressure drop. Output ranges from 170 kW to 1330 kW Excellent energy efficiency Balanced flue options Modulating performance up to 15:1 Wide range of flow rates with low pressure drop Automatic frost protection Up to 4 separate heat zones for each boiler, as well as DHW Optional BMS interface with remote monitoring 30% smaller footprint than competing models Integral safety controls to BS 6644:2014 Natural Gas • Stainless Steel Heat Exchangers. • Class 6 NOx. <36mg/kWh • Fully Modulating Premix Burner. • Turndown up to 15:1 model dependant. • Room Sealed Functionality. • 6 Bar Maximum working pressure. • Direct BMS Connectivity. • Integral Cascade Functionality up to 16 boilers. (30kW – 18MW) • Optional Matched Low Loss Headers or Matched System Separation Plate Heat Exchangers. • Anti-Seize Pump and Valve Program. • Frost Protection Program. • Integral Safety Controls Fully Compliant with BS:6644. • Remote Monitoring Options. GSM / Web Connectivity.
