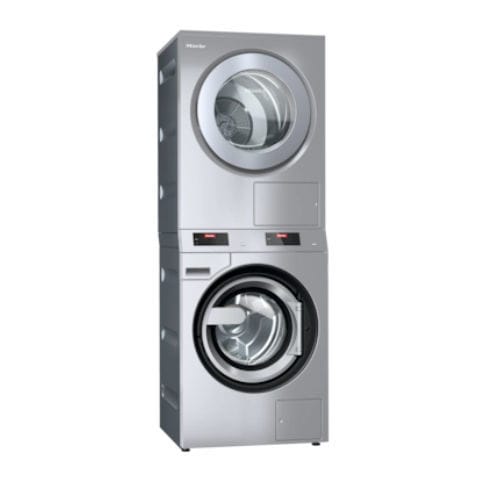

Floor washer-dryer PDW 909

commercial

Product overview
Professional washer-dryer stack combining a washer-extractor and tumble dryer in a vertical configuration to save floor space while maintaining high throughput and short programme cycles. Electric heating and integrated drain pump; suitable for marine and industrial applications.

Main features

• Drum volumes: 80 l (washer-extractor) and 180 l (tumble dryer)
• Load size: 2 x 9 kg (washer 9 kg / dryer 9 kg)
• Wash fill ratio 1:9; dryer fill ratio 1:20
• Up to 18% less water and 45% less energy consumption compared to predecessor (model-dependent)
• Ergonomic central control: centered M Touch Pro (Plus) control unit
• High laundry throughput with very short programme cycles
• Prepared for connectivity: LAN and WLAN (LAN via separate Miele communication module)
• Automatic door lock; OneFingerTouch for easy door closing

Product benefits (highlights)

• Economical operation with low consumption values for professional use
• Space saving: requires less than 1 m² floor space
• Gentle fabric care: Miele honeycomb drum with SoftLift ribs
• Quick and efficient commercial technology for short programme times
• PerfectDry system for optimum drying results via residual moisture measurement
• Intelligent tumble dryer technology for gentle and uniform drying
• Freely programmable washing controls for operational flexibility
• Large-surface ergonomic dryer filter for easy lint removal

Connectivity & integration

• LAN interface (secure wired network communication)
• WLAN interface (wireless data exchange)
• Prepared for connection to high-performance software solutions; Connector Box for external system integration (payment, dispensing, peak-load systems)

Suitability / Application

• Suitable for marine use and offshore installations (robust design and programmes for heavy soiling)
• Also suitable for self-service laundrettes and payment-system integration

Downloads & certificates (examples available for product)
Manufacturer provides product-related documentation as downloadable PDFs, e.g. operating instructions, installation diagrams, EU Declaration of Conformity, hygiene certificate and product sheet.

Caractéristiques / spécifications techniques

• Construction type and version: Front-loading stack; Range: Performance Plus; Front material: Stainless steel
• Washer-extractor load capacity: 9 kg
• Tumble dryer load capacity: 9 kg
• Washer-extractor drum volume: 80 l
• Tumble dryer drum volume: 180 l
• Drying system: Exhaust air
• Washer-extractor door opening diameter: 370 mm
• Tumble dryer door opening diameter: 440 mm
• Door opening angle: 180°
• Door hinge: Washing right / drying left
• Automatic door lock: Yes (OneFingerTouch)
• Honeycomb drum: Yes
• Specific water consumption (Cottons 60 °C, hot rinse): 6.6 l/kg (reference programme)
• Specific washer-extractor energy consumption (reference programme): 0.03 kW
• Specific tumble dryer energy consumption: 0.51 kWh/kg (reference)
• Maximum tumble dryer evaporation capacity: 7.4 l/h
• Washer-extractor programme duration (Cottons 60 °C, hot rinse): 45 min (reference)
• Tumble dryer programme duration (Cottons/Normal drying to 0%): 36 min (reference, model-dependent)
• Residual moisture (cold rinse): 47% (minimum after spin)
• Residual moisture (hot rinse): 44% (minimum after spin)
• Washer-extractor spin speed: 1,300 rpm
• Washer-extractor g-factor: 518
• Control type (washing machine): M Touch Pro Plus (freely programmable)
• Control type (tumble dryer): M Touch Pro (residual moisture controlled)
• Delay start (dryer): up to 24 h
• Detergent drawer compartments: 3
• Max number of liquid dispenser connections: 6; Empty sensor: Yes
• Type of heating (washer & dryer): Electric
• Standard electrical connection (displayed variant on page): 3 AC 440 V 60 Hz for washer; 3 AC 440 V 50/60 Hz for dryer
• Heater rating (washing machine shown): 6.05 kW; total connected load washing machine: 6.3 kW; fuse: 10 A
• Heater rating (tumble dryer shown): 5.18 kW; total connected load tumble dryer: 5.5 kW; fuse: 10 A
• Alternative voltage options available (conversion by service): e.g. 3 AC 480 V / 3 AC 400 V variants with different heater ratings and connected loads (model-dependent)
• Cold water connection: 1 x 1/2" hose with 3/4" threaded union; Hot water connection: 1 x 1/2" hose with 3/4" threaded union
• Drain pump: DN 22
• External dimensions (net): Height 1940 mm; Width 692 mm; Depth 761 mm
• Net weight: 208 kg; Gross weight (incl. packaging): 232 kg
• Maximum floor load (static/dynamic value indicated): 3235 N
• Emission sound pressure level in workplace: 63 dB(A) re 20 µPa
• Heat dissipation into the room (washer): 3 MJ/h; (dryer): 1.62 MJ/h (max values)
• Standards & certificates: CE, VDE-EMC, VDE, IPX4 splash-proof rating, WEEE, complies with Machinery Directive 2006/42/EC
• Notable functions: Disinfection rinse, temperature monitoring, volumetric flow meter for precise water consumption, powerful heater elements, axial airflow dryer, large-surface dryer filter, PerfectDry, SoftLift ribs, low-temperature drying option, wide range of accessories
