Spray disinfection system PWD 8682 [DC5]

steamobjectfor medical applications

Overview

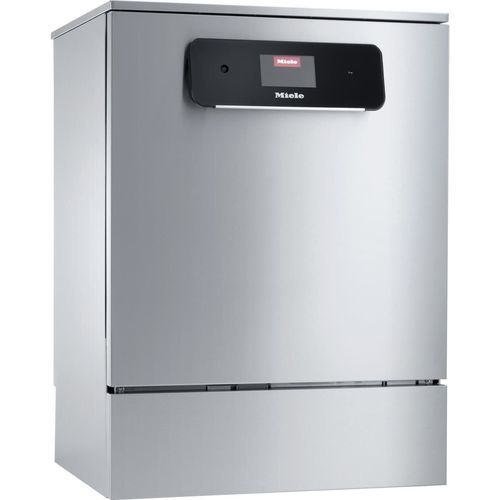

Professional thermal disinfector and washer-disinfector from the Miele ExpertLine. Version shown: stainless steel only. Supports AD (fully demineralised) water connection and offers integrated liquid dispensing, EcoDry drying with patented AutoOpen, M Touch Flex full-touch colour display and WiFi connectivity as standard.

Highlights

• EcoDry with patented AutoOpen: door opens automatically at program end to support rapid drying and release of residual moisture.
• Crevice-free wash cabinet: optimised geometry and laser welding for hygienic interior surfaces.
• Spray arm monitoring and spray arm pressure monitoring: continuous monitoring of rotation speed and jet pressure for consistent cleaning and rapid blockage detection.
• M Touch Flex full-touch colour display: intuitive control with clear-text guidance for programmes and functions.
• Integrated dispensers and suction lance options: pumps for liquid cleaning agent, neutraliser and rinse aid; support for 10–20 l canister suction and optional Comfort suction lance DC5 for 5 l canisters with fill-level detection.
• Standard WiFi connectivity: secure network connection for process documentation and network printers; optional Ethernet interface available.
• Variable-speed heater pump: adaptive wash pressure to match programme requirements for optimal cleaning and reduced consumption.
• Wash cabinet lighting: two LEDs at the top for easier loading and unloading.
• Extensive optional components available for dental, medical and laboratory reprocessing workflows.

Performance / Typical cycle examples
Examples per cycle: 44 transmission instruments or 44 suction devices; 8 DIN mesh trays or 48 GYN specula; 8 ophthalmology sets; 2–3 AN sets; up to 28 theatre shoes; up to 44 lumened or transmission instruments.

User convenience & safety

• How-to sequences displayed to guide operators and reduce downtime.
• Process approval directly via the display (batch control/approval on the machine).
• Time-left and programme sequence display for operator information.
• AutoClose available to assist handling.
• Waterproof System (WPS) to protect against flooding: automatic stop of water intake in case of faults.

Programs and documentation
23 built-in programmes and 5 free programme positions; programmable with max. delay start 24 h. Intelligent A0-value control for disinfection termination when required A0 reached. Supports end-to-end process documentation via available interfaces and secure connectivity.

Applications

• Designed for hospitals, dental practices, medical and outpatient surgeries, veterinary and podiatry practices — flexible components and programmes to meet these workflows.

Technical specifications

• Model designation: PWD 8682 [DC5]
• EAN: 4002516883692
• Article number / Material number: Article number 62868208GB / Material number 12798450
• Range: ExpertLine
• Casing / Wash cabinet: Stainless steel; wash cabinet welded using laser technology (crevice-free)
• Control system: M Touch Flex full-touch colour display; clear-text display in selectable languages
• Programmes: 23 programmes; 5 free programme positions; programmable; max. delay start 24 h
• Disinfection control: Intelligent A0-value controls
• Connectivity: WiFi as standard; optional Ethernet interface
• Dispensing: Integrated dispenser pumps for liquid cleaning agent, rinse aid and neutraliser; suction lance options for 5 l and 10–20 l canisters with fill-level detection (Comfort suction lance DC5 available)
• Water connections: Cold water 1; Hot water 1; DI water 1; AD water connection supported; VEP feed pump for DI water (option)
• Integrated water softener: yes
• Required supply flow pressure (cold/hot/DI): 200–1000 kPa
• Drain pump: DN 22; maximum delivery head 100 cm
• Circulation pump: Qmax 500 l/min
• Maximum final rinse temperature: 93 °C
• Wash cabinet usable capacity: 145 l; usable height 520 mm; width 530 mm; depth 520 mm
• Number of wash levels: 2
• Typical capacity examples: see Performance section
• Electrical connection (standard): AC 230 V 50 Hz; electric heater rating 5.5 kW; total rated load 6.3 kW; fuse rating 32 A; mains cable 1.9 m
• Noise / emissions: Emission sound pressure level ≤ 70 dB(A) re 20 µPa; heat output into the room (max) 1.8 MJ/h
• External dimensions (net): H 835 mm × W 598 mm × D 598 mm; gross with packaging H 920 mm × W 670 mm × D 740 mm
• Net weight: 74 kg (gross incl. packaging: 83 kg)
• Maximum floor load: 1220 N/m²
• Tested operating hours (reference): 15,000 h
• Standards / Approvals: EU medical device class IIb; IP21; compliant with EN 61010-1 and EN 61010-2-040; KIWA certificate for water safety; Regulation 4 compliant
