Product type

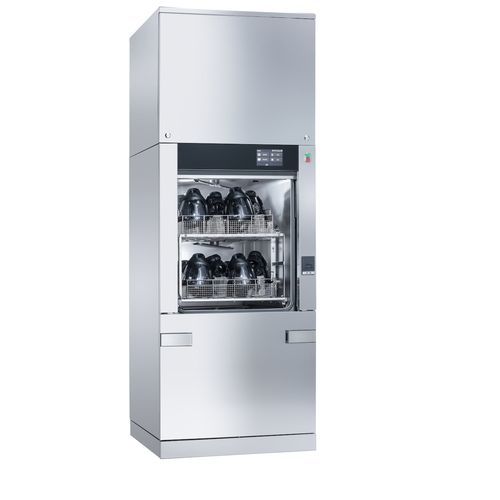

Washer-disinfector for the reprocessing of breathing apparatus – electric heating, single door, 900 mm wide

Highlights

• Alternative load: 4 compressed air bottles or 4 carrier frames
• Intuitive operation and programmable controls: 7" full-touch colour display for intuitive use; flush-fit display in machine front for easy cleaning; programmes flexible and modifiable
• High-performance system with specific programmes adapted for breathing apparatus
• Reliable results thanks to spray arm monitoring (monitors rotation speed of spray arm)

Key benefits / Features

• Smart two-pump technology with variable-speed pump for flexible wash pressure and economical resource use
• Conductivity monitoring for residue-free final rinse
• Integrated hot-air drying (filtered with HEPA H13) for efficient, particle-free drying
• Modular load carriers: adaptable to different load items and applications
• Programmable controls: many free programme positions for customisation
• Status display via multi-coloured chamber lighting to indicate programme phase
• Integrated dispenser pumps for liquid media and additional integrated dispenser pumps available
• Micro-fine large-surface filter (mesh 0.2 mm) to remove smallest particles from wash water
• Optional steam condenser and optional drain pump
• Integrated printer (optional) and interfaces for process documentation (Ethernet, USB)

Application / Suitable for
Designed for reprocessing breathing apparatus; suitable for fire brigades and rescue services

Programmes (overview)
Breathing apparatus; Vario FB Special; Vario FB Special Plus; Vario FB Chem; Vario FB Chem Plus; Drying FB; plus many programmable/custom positions

Product details — Construction type and version
Construction type: Freestanding, 1 glass vertical sliding door
Range: PerformanceLine
Type of heating: Electricity
Front/back: Stainless Steel
Side panels: Stainless steel
Single/multiple installations: yes
Loading with mobile units: yes
Electric door lock: yes
Buzzer (acoustic signal at end of programme): yes
Service-friendly design: maintenance-optimised appliance design

Capacity
Breathing masks [number]: 24
Compressed air bottles [number]: 4
Compressed air unit carrier frames with compressed air bottle [number]: 2
Compressed air unit carrier frames [number]: 4
Maximum load in kg: 150

Performance data
Circulation pump, Qmax in l/min: 400
Additional circulation pump for load carrier – direct coupling, Qmax in l/min: 600
Variable-speed pump: yes (two-pump technology with variable-speed pump)
Wash cabinet usable capacity in l: 351
Tested operating hours: 15000
Service life in wash cycles: 20000

Control system
Control type: PST 20
Programme selection: Full-touch colour display (7")
Programmability: programmable
Free programme positions [number]: 170
Automatic programme restart / programme failure protection: yes
Time left display: yes
Programme sequence display: yes
Selectable display languages: multiple
Status display via chamber lighting: yes

Standard electrical connection
Electrical connection: 3N AC 400V 50Hz
Heater rating in kW: 18
Total rated load in kW: 20
Fuse rating in A: 32-35

Water connection / Drainage
Cold water connections: 2
Hot water connections: 1 (optional connection to warm water supply to save time/energy)
DI water connections (fully demineralised water): 2
Required flow pressure in kPa: 200-1000
Maximum water hardness (cold/hot) in mmol/l: 0.71
Drain valve DN: 50
Drain pump: optional

Compressed air connection
Compressed air connection, technical: 1
Required compressed air, technical, in kPa: 600-800

Drying unit
Drying unit heating type: Electricity
Air throughput in m³/h: 250
Time setting in 1-minute increments: 1-240
HEPA filter class: H13
HEPA filtration efficiency (DIN EN 1822) in %: 99.95
Electric heater rating in kW: 8

Dimensions and weight
External dimensions, net height in mm: 1670
External dimensions, net width in mm: 900
External dimensions, net depth in mm: 990
External dimensions incl. plinth/floor tray and top-box panelling, height in mm: 2495
External dimensions, gross height (incl. packaging) in mm: 1960
External dimensions, gross width (incl. packaging) in mm: 1000
External dimensions, gross depth (incl. packaging) in mm: 1130
Wash cabinet height in mm: 675
Wash cabinet width in mm: 650
Wash cabinet depth in mm: 800
Rack height above floor in mm: 850
Net weight in kg: 372
Gross weight in kg (incl. packaging): 383
Maximum floor load in N/m²: 8000

Emissions
Sound pressure LpA in cleaning and drying (DIN EN ISO 11201): ≤ 65 dB(A) re 20 µPa

Standards, test certificates and symbols
CE; VDE (electrical safety); EN 61010-2-040; Machinery Directive 2006/42/EC

Notes on accessories / consumables
Optional/compatible items: modular load carriers and accessories for laboratory technology; consumables/detergents for laboratory reprocessing (range of process chemistry available)

Technical specifications

• Brand: Miele Professional
• Model / Denomination commerciale: PLW 8615 [Safety EL]
• EAN: 4002516669159
• Article number: 62861509GB
• Material number: 12278680
• Type: Washer-disinfector for breathing apparatus, PerformanceLine
• Heating: Electric
• Width: 900 mm
• Wash cabinet capacity: 351 l
• Max. load: 150 kg
• Integrated HEPA-filtered hot-air drying (H13)
• Programmable controls with 7" full-touch display
• Interfaces: Ethernet, USB; supports process documentation and integrated printer (optional)
• Two-pump technology with variable-speed pump (smart two-pump)
• Spray arm monitoring and conductivity monitoring for quality assurance
