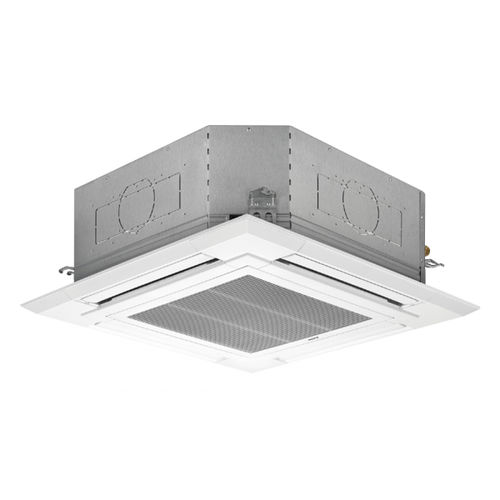

Ceiling air conditioner PLA-ZMsplitcommercialreversible
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Installation
- ceiling
- Type
- split
- Sector
- commercial
- Function
- reversible
- Certifications
- Class A++, class A+++
- Other characteristics
- inverter, outdoor, cassette, R32
- Cooling power
Max.: 15 kW
Min.: 1.6 kW
- Heat output
Max.: 18 kW
Min.: 1.6 kW
- Noise level
51 dB, 54 dB, 57 dB, 61 dB, 62 dB
- Interior unit height
258 mm, 298 mm
(10 in, 12 in)- Interior unit width
840 mm
(33 in)- Interior unit depth
840 mm
(33 in)- Exterior unit height
630 mm, 943 mm, 1,338 mm
(24.8 in, 37.13 in, 52.68 in)- Exterior unit width
809 mm, 950 mm, 1,050 mm
(31.85 in, 37.4 in, 41.34 in)- Exterior unit depth
300 mm, 330 mm, 355 mm, 370 mm
(11.81 in, 12.99 in, 13.98 in, 14.57 in)
Description
The PLA-ZM Power Inverter range is a ceiling cassette system that blends a host of outstanding features with a sophisticated streamlined design. Offering high seasonal efficiency, advanced control options and extended pipe runs, this range is extremely flexible and utilises low GWP R32 refrigerant.
Optional filter lowering grille down to 4m
100m pipe run (size 100-140)
Full heating capacity down to -3°C
Optional 3D i-see Sensor grille
Plasma Quad Connect compatible
