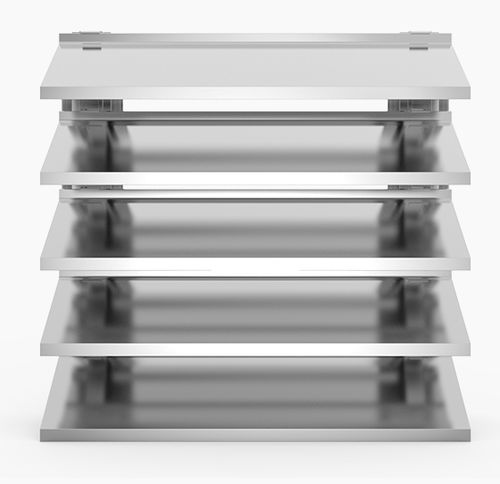

Aluminum ventilation grill 755HEI
rectangularsquareexterior

aluminum ventilation grill
aluminum ventilation grill
aluminum ventilation grill
aluminum ventilation grill
Add to favorites
Compare this product


Characteristics

Material
aluminum
Shape
rectangular, square
Interior/exterior use
exterior
Market
commercial
Applications
for facade
Color
white

Description

Aluminium louvre wall, heated System 755Hei MLL aluminum louvre wall heated with a free ventilation cross-section of 69%. The mounting at a facade done by the supporting pillar. The slats are fixed to the MLL-Clip system and later, for example for repair work on the facade or similar removable again. Heavy Series: Z-slat, heated Fin spacing: 100 mm Assembly: Slat 050Hei on supporting pillar 005, supporting pillar 005 with retainer 15.2, supporting pillar distance 1200 mm Fly screens: Fiberglass MW 1.4mm / 1.4mm Nirosta MW Bird protection: Galvanized MW 10 mm / 8 mm Nirosta MW Surface: E6 / EV1 anodised, E6 / C31-35 shades, RAL to choose / raw Special colors on request * Connecting / Wiring through a qualified electrician SPECIFICATIONS / WIRE: Max. Permissible operating temperature: 65 ° C Max. Permissible ambient temperature: 80 ° C (heating power off) Work area: +10 / -40 ° C The MLL system type 755Hei is a heated louvre wall. The slats are provided with heating wires and heat (heat regulation is done through thermostat), depending on the outside temperature. Ice and snow are prevented on the fin surface. APPLICATION: Suitable for ventilation and ventilation for the outdoor and explosion-proof area. Wherever a free air circulation must be ensured to the weather protection system reliably protect even at outside temperatures below 0 ° C before icing and icicles and thus ensure the necessary ventilation cross section for systems.
