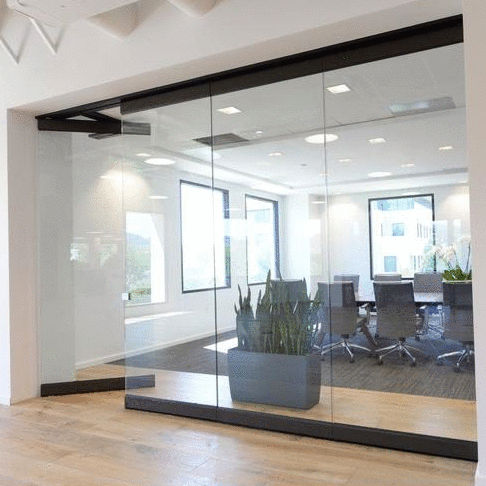

Tempered glass panel VISION 100

frostedpaintedcolored

Vision creates physical separation in an open plan layout but maintains the openness and the always desired joy of natural light. It is a single panel, non- acoustical partition system that utilizes 1/2” (11.5 MM) thick tempered glass with clear as the standard but also available as tinted, colored, etched, sand blasted, acrylic or custom designed to fit your specific requirements. The horizontal rails standard finish is clear anodized with optional painted and anodized finishes available upon request. Maximum standard height is 12 Ft (3657 MM) with standard panel widths of 48 Inches (1219MM): contact Moderco for special applications. • Manually-operated individual-panel glass movable partition. • 35 mm [1 3/8 nominal thickness. Up to 1220 mm [48 width. • Clear 12 mm [1/2 tempered glass faces with polished vertical edges. • Clear anodized aluminum horizontal mouldings with brush seals. • Each panel fitted with a foot bolt to stabilize the partition. • Clear anodized 6063-T6 alloy aluminum track. • Each panel supported by two dual horizontal wheel carrier with nylon tires over hardened precision ground steel ball bearing wheels. • Maximum height : 3658 mm [12’-0. • Powder-coated frame and/or track. • Glass finishes : stained, colored, acid washed, frosted, etc. • 11 ga. steel track with programmable switches, painted white. • Final closure by ADA-compliant pivot panel. • Floor bolt for last movable panel fitted with : - keyed locks both sides. - keyed lock and thumb turn. • Pivot panel accessories : - keyed locks both sides. - keyed lock and thumb turn.
