Sliding and stacking industrial door HINGE GLASS

steelperforated aluminumpolished aluminum

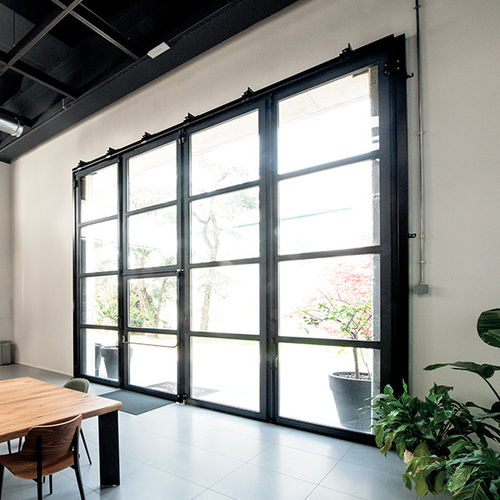

The Bifold glazed door is made up of doors made of tubular steel perimeter profiles with "L" section dim.60x90mm. and connecting crosspieces made of tubular steel profiles with 'T' section dim.60x90mm. all with zinc bath finish and subsequent painting in a RAL colour of your choice with peel effect. Half glass curtain walling of the type and finish of your choice (double glazing, safety glass, transparent, satin glass, etc.) with a maximum total thickness of 40mm. Snap-in glass stop made with suitably sized profile in painted aluminium in the same colour as the door. The load-bearing structure is made up of side posts in galvanised tubular steel painted black and an upper guide, made to our design, in steel material with electrolytic galvanised finish and painted black. This type of door does not require a lower guide because the two side posts and the upper guide are connected to each other and consequently walled in, thus forming a real frame for the door guaranteeing a high degree of stability and rigidity. One or more aluminium slippers are doweled to the floor so that the pin with the olive in galvanised steel can be inserted and the door can be closed. On the inside, at man height, there are wheelbarrows and handles in black painted aluminium alloy for opening and closing the door itself.
