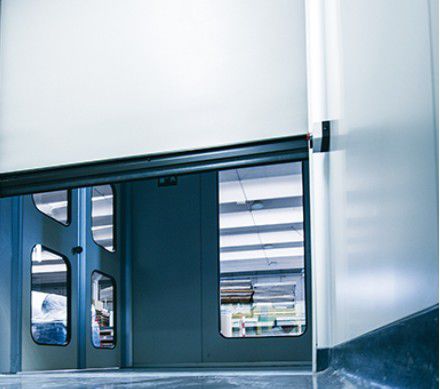

Roll-up industrial door CLEAN

stainless steelfabricsheet metal

Designed and manufactured by Moreschi, they meet the strict criteria of the pharmaceutical, biotechnology and medical technology, cosmetics, electronics, aerospace and automotive industries. In grado di fornire un’ottima tenuta all’aria e con un’elevata velocità di funzionamento, minimizza il passaggio delle impurità tra gli ambienti. ECHNICAL PRODUCT INFORMATION Structure: Folded sheet metal with standard finish painted white RAL9010. Removable casing for maintenance. Curtain: Antistatic fabric with FDA approval. Standard colours (similar RAL): Grey (7038), Blue (5005). The bottom plinth consists of sheet metal with standard finish painted white RAL9010 and sealing gasket. Motorization: Worm geared motor unit external to the structure covered with crankcase. Nominal speed up to 1.25 m/sec. Control unit with external inverter that allows programming the movement of the sheet with acceleration and braking ramps and speed control. Safety: Photocell barriers Fields of application with temperatures between +4° C and +40° C Air permeability with pressure of of 50 Pa < 12 m³/m²*h EN12426 220V single-phase power supply CE marking EN13241-1 Optionals: Antistatic Curtain colour Sky blue (5015) Smooth Structure colouring in RAL colour on request Stainless steel structure Window section h.500mm Construction with UL components UPS
