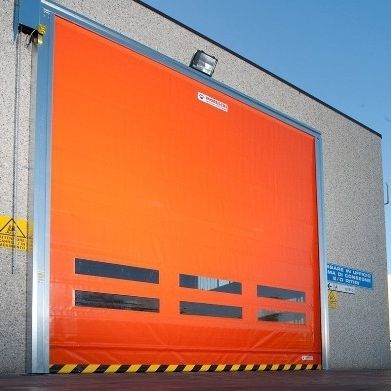

Entry door SPEEDY FOLD

metalsteelfabric

Moreschi's care for materials and cutting-edge technology make this door robust and durable, ideal for supporting the company's production flows. The upward opening is very fast, thanks to the self-supporting structure in galvanized steel and the tear-proof PVC sheet that counteracts the wind thrust. FOLDING RAPID door consisting of self-supporting metal structure with galvanised steel finish and wear-proof rubber profiles for sliding surface; rotation shaft on bearings; 400/230 V three-phase power supply operating unit with electromagnetic brake; limit switch unit; positioned on the sides. Motor cover in galvanised sheet steel; protected transmission elements; electrical system with flame resistant cables CEI 20-22-II; anti-crushing safety (UNI EN 12453): infrared photocell transmitter-receiver unit; inductive type inductive edge via radio with self-test; with flexible tear-proof PVC fabric sheet. Switchboard in IP 66 plastic case, programmable operating logic (automatic, semi-automatic, man present), 230/400 V three-phase, 50 Hz power supply, 24 V low voltage auxiliaries. Opening push-button on the panel and n°01 separate open/stop push-button panel. Device for manual opening and closing from ground with safety micro and crank handle in absence of voltage. Intermittent flashing beacon with 220 V power supply. Speed of wrapping up to 1 m/sec Rigid Structure with steel tubes for wind load resistance class 2 in PVC Curtained polyester tear-proof Curtain fire reaction class 2 (printed on the cloth as required by law) with lifting straps with high safety factor.
