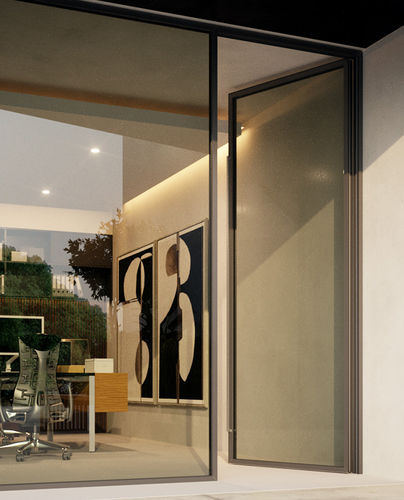

Casement door MOTION 9700entryaluminumminimal
Add to favorites
Compare this product
Characteristics
- Type
- entry
- Material
- aluminum
- Opening system
- casement
- Style
- minimal
- Glazing
- glazed
- Glass finishes
- clear glass
- Configuration
- 1 leaf
- Technical characteristics
- thermal break
- Color
- brown
- Applications
- patio
- Width
1,400 mm
(55.12 in)- Height
5,000 mm
(196.85 in)
Description
Frame Profile Height - 25 mm
Frame Profile Width - 60 mm
Sash Profile Height - 27 / 36 mm
Sash Profile Width - 60 mm
Opening Type - Hinged
Max sash width - 1400 mm
Max sash height - 5000 mm
Max Sash weight - 300 Kg
Glazing width possibilities - 32 / 45 mm
Max Locking Points - 9
Thermal Break width - 20 / 24
Sealing Type - 3 Gaskets
Performances
Fabrication Thermal Transmittance
EN ISO 10077-2 (Uw) - ≥0.9 W/(m2K)
