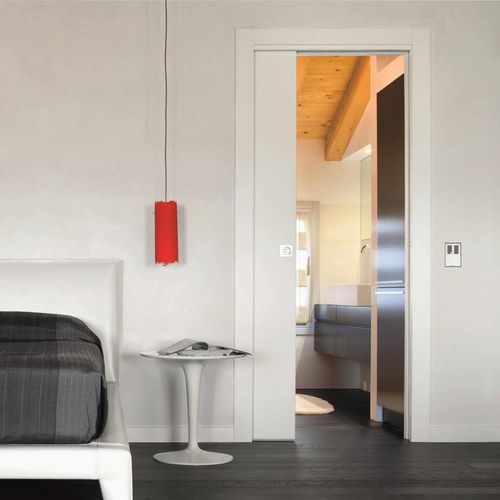

Pocket door automation E-MOTION

The e-motion is an automatic door track for pocket door systems, specifically engineered and manufactured under exclusivity by MOTION4 for ECLISSE, the Italian manufacturer market leader of counterframes for pocket door systems. Thanks to the exclusive magnetic linear motor technology developed by MOTION4, this automatic door track combines a smooth and silent performance with an elegant movement, being the ideal solution for the automation of sliding doors inside private homes, hotel rooms, retail shops, restaurants, etc. The door can be activated by means of a push button, sensor or simply pushing the door handle on the same door leaf (push & go). MAIN TECHNICAL FEATURES Compact aluminium housing: only 58h x 52d mm Minimum clear opening: 700 mm Guide length: 1420mm Maximum clear opening: 1300 mm Guide length: 2620mm Leaf weight up to 80 Kg Adjustable opening speed: 200 to 700 mm/s Adjustable acceleration and braking curves: 200 to 800 mm/s2 Low operating noise: <50 dB Power supply: 230/110V AC 50-60Hz Power consumption: – In operation: 80 W – Peaks (0,2 sec): 150 W – Stand-by: 15w MOTOR SPECIFICATIONS Brushless electric three phase AC motor type LSMPM – Linear Synchronous Motor with Permanent Magnets Tension: 24 V DC Peak current: 6 A Operating current: 3 A Magnetic encoder with hall cells. ELECTRONIC SPECIFICATIONS Microprocessor controlled (DSP) 4 operating modes: – Automatic – Open – Close or Close/Lock (with optional auto lock) – Exit Only Functions: – Push&go – Cleaning mode – Adjustable parameters – “Low energy” or normal mode – Opening speed – Closing force – Reopening sensitivity – Hold open time
