Outdoor staging system UNIVERSAL

for special eventseasy to installheight-adjustable

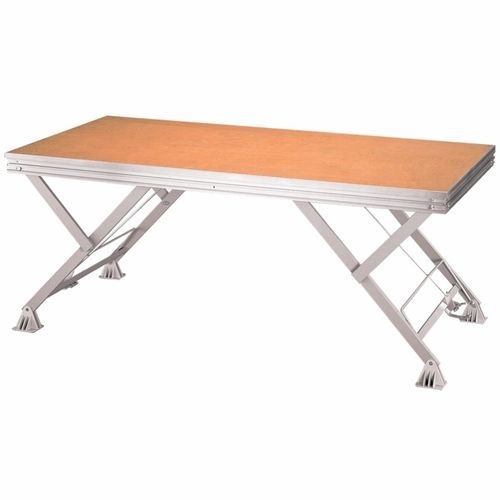

Among Mott's mobile stage systems, the Universal scissor lift is a true all-rounder. This mobile stage element with its scissor mechanism is suitable for stages and grandstands, catwalks and platforms. You can use the Universal scissor lift at outdoor events , in halls , and in auditoriums . Mott manufactures the scissor lift in several variations. Universal scissor lift with variable height adjustment The Y-shaped scissor hinges allow for effortless height adjustment. Five height settings are possible, ranging from 20 to 100 centimeters , with each adjustment increment being 20 cm . Furthermore, the stage can be tilted at any height setting . The Universal scissor lift has a sturdy steel frame with a gray powder coating. The platform offers a working area of ​​100 x 200 cm , providing a usable area of ​​two square meters. The weight starts at 64 kg for the foot-operated release and at 60 kg for the hand-operated release. The stacking height of the folded platform is 20 centimeters . The maximum load capacity of a Universal scissor lift unit is 750 kg/m² . You can extend the usable area as needed using connectors. The X-connectors ensure a level surface, reliably compensating for any unevenness.
