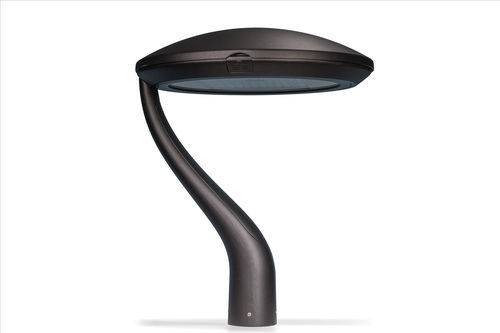

Pole-mounted light fixture AGORA D

LEDrectangularIP66

Product description
The Agora D street luminaire is designed for urban outdoor lighting projects. It integrates high-efficiency LED modules, passive cooling and a modular, service-friendly mechanical design to ensure long service life and simplified maintenance.

Applications

• Street lighting
• Parks and public squares
• Parking areas
• Pedestrian paths and cycleways

Certificates
Certified to IP66, IK09, CE and ENEC as specified on the product page.

Basic features

• Latest-generation LED technology with high luminous efficacy
• Lower energy consumption versus traditional light sources
• Good color rendering (CRI > 70) with higher CRI options available
• High-efficiency driver with high power factor
• LED lifetime L98B10 > 100,000 h
• Minimal maintenance requirement
• No UV emission

Light characteristics
Luminous flux: 625 - 14,700 lm
Color temperature (±5%): 3000 K (1850, 2200, 2700, 4000 K optional)
Lamp efficacy: 125 – 158 lm/W
Color rendering index (CRI): > 70 (options: 50, 80, 90)
Protective cover: Flat tempered glass (6 mm)
LED permanence: L98B10 > 100,000 h
SDCM: < 5
ULOR: 0% (full cutoff)
UV radiation: 0%
Warm-up time: < 0.5 s
Lens type: Single asymmetric

Electrical / Control
Rated power: 5 - 100 W
Input voltage: 220-240 V AC
Operating frequency: 50 – 60 Hz
Power factor: > 0.95
Electrical protection class: Class I, Class II
Ambient temperature range: -40 °C to +55 °C
Surge protection (options): 10 kV, 15 kV, 20 kV / 10 kA
Zhaga socket for controller and sensors (Book 18): Yes


Mechanical characteristics
Housing material: Die-cast aluminium
Corrosion protection: Electrostatic powder coating
Cooling: Passive
Power cut-off switch: Yes
Lens material: PMMA, PC
Color: Matte gray (RAL 9006)
Tool-free housing opening: Yes
Modular lamp design: Yes
Housing seals: Silicone
Max wind area: 0.085 m²

Management and controls
Automatic autonomous control: AstroDIM
Light regulation: DALI-2, D4i, time dimming
Control range: 0–100%
Dim-to-off: Yes
Built-in CLO (optional): Yes
Wireless driver programming: NFC
Digital communication: DALI variants and Zhaga interface integration supported

Protection
Surge protection options: 10 kV, 15 kV, 20 kV / 10 kA
Short-circuit protection: Yes
Thermal protection for LED modules: Yes

Dimensions (selected models)
Model / Width (mm) / Length (mm) / Height (mm) / Pole diameter (mm) / Mass (kg)
Agora M / 440 / 490 / 600 / Ø76 / 10.3
Agora S / 440 / 490 / 600 / Ø76 / 9.7

Smart-ready components

• DALI-2 bus inside the luminaire
• Smart driver with DALI-2 interface
• Wireless driver programming via NFC
• Zhaga socket on top (Zhaga Book 18)
• Midnight dimming

Other
Technical datasheet available for download on the product page.

Warranty
Standard warranty: 6 years. Warranty extension options available.

Technical specifications

• Luminous flux: 625 - 14,700 lm
• Available color temperatures: 1850 / 2200 / 2700 / 3000 / 4000 K
• Efficiency: 125 – 158 lm/W
• CRI options: >50 / >70 / >80 / >90
• Rated power range: 5 - 100 W
• Input: 220-240 V AC, 50-60 Hz
• Power factor: >0.95
• Protection class: Class I / Class II
• Operating temperature: -40 °C to +55 °C
• Surge protection options: 10 kV, 15 kV, 20 kV / 10 kA
• Zhaga sockets: controller and sensors (Book 18)
• Housing: die-cast aluminium with electrostatic powder coating
• Lens: PMMA / PC, flat tempered glass 6 mm
• LED lifetime: L98B10 > 100,000 h
• ULOR: 0% (full cutoff)
• SDCM: < 5
• Max wind area: 0.085 m²
