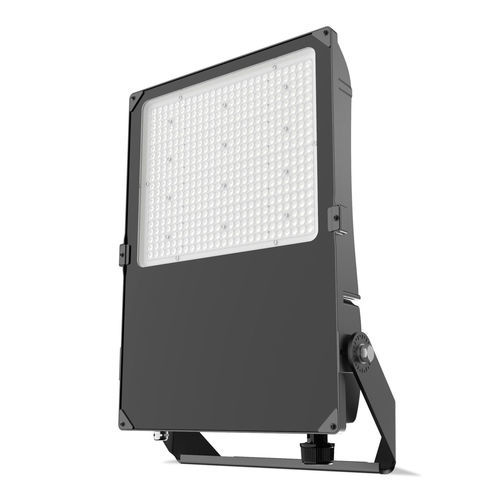

LED floodlight FLEXCORE

for sports fieldsfor parking lotfor industrial use

Product overview
FlexCore by MS LUX is a versatile LED floodlight range for outdoor and large indoor area lighting. Available in six power ratings (50–400W) and multiple optical configurations, FlexCore provides configurable lumen output and mounting options for sports venues, industrial sites, parking areas and storage yards.

Applications

• Sports fields and halls
• Industrial sites and warehouses
• Outdoor car parks and perimeter lighting

Key features

• Power range: 50 W – 400 W with six housing sizes
• LED modules of the latest generation with high luminous efficacy
• Lamp efficacy: typically 150 lm/W (50–300W), 155 lm/W (400W)
• Color rendering: Ra > 70 (80 and 90 CRI options)
• Passive cooling, die-cast aluminium housing and silicone seals
• Flat 4 mm tempered glass protective cover; UV emission: 0%
• Lifetime: L80 @ Ta=25°C — 76,824 h (50–300W); 69,142 h (400W)
• Certified: IP, IK, CE, ENEC (depending on configuration)

Certificates

• IP / IK / CE / ENEC as indicated on product page
• Additional certification icons available on the product sheet

Electrical characteristics (table)
Model | Lamp power (±5%) (W) | Luminous flux (±10%) (lm) | Efficiency (lm/W) | CCT | CRI
FlexCore 50 | 50 W | 7,500 lm | 150 lm/W | 5000K | >70
FlexCore 100 | 100 W | 15,000 lm | 150 lm/W | 5000K | >70
FlexCore 150 | 150 W | 22,500 lm | 150 lm/W | 5000K | >70
FlexCore 200 | 200 W | 30,000 lm | 150 lm/W | 5000K | >70
FlexCore 300 | 300 W | 45,000 lm | 150 lm/W | 5000K | >70
FlexCore 400 | 400 W | 62,000 lm | 155 lm/W | 5000K | >70

Electrical characteristics — additional
Input voltage: 220–240 V AC (50–300W), 120–240 V AC (400W)
Operating frequency: 50–60 Hz
Power factor: > 0.90 (50W), > 0.95 (100–400W)
Protection class: Class I
Ambient temperature: -30 °C to +50 °C (general), -30 °C to +45 °C (400W)
Surge protection (option): CM/DM up to 10 kV (50–300W), up to 20 kV (400W)

Light characteristics (table)
Luminous flux (±10%): 7,500–62,000 lm
CCT: 5000K (3000K / 4000K options)
Lamp efficiency (5000K Ra70): 150 lm/W (50–300W), 155 lm/W (400W)
CRI: > 70 (80, 90 options)
Protective cover: Flat tempered glass, 4 mm
LED lifetime @Ta=25°C: 76,824 h - L80 (50–300W); 69,142 h - L80 (400W)
SDCM: < 5
ULOR: 0% (full cutoff)
UV radiation: 0%
Warm-up time: < 0.5 s
Lens types: Asymmetric, symmetrical

Mechanical characteristics (table)
Case material: Die-cast aluminium
Corrosion protection: Electrostatically applied powder/paint
Cooling system: Passive
Lens material: PC
Corrosion category: C3
Opening the housing without tools: No
Seals: Silicone
Max. surface exposed to wind: 50W - 0.045 m²; 100W - 0.066 m²; 150W - 0.084 m²; 200W - 0.110 m²; 300W - 0.161 m²; 400W - 0.208 m²

Dimensions (table)
Model | Product dimensions (mm) | Weight (kg) | Packaging dimension (mm) | Gross weight (kg)
FlexCore 50 | 267 x 228 x 55 | 1.8 kg | 320 x 265 x 118 | 2.2 kg
FlexCore 100 | 314 x 269 x 61 | 3 kg | 390 x 315 x 123 | 3.4 kg
FlexCore 150 | 360 x 302 x 67 | 4.7 kg | 430 x 345 x 128 | 5.1 kg
FlexCore 200 | 398 x 343 x 70 | 5.9 kg | 470 x 385 x 133 | 6.5 kg
FlexCore 300 | 470 x 406 x 80 | 8.3 kg | 545 x 450 x 143 | 9.1 kg
FlexCore 400 | 624 x 407 x 89 | 12.0 kg | 735 x 475 x 155 | 13.5 kg

Accessories

• 42 mm adapter
• 60 mm adapter
• 76 mm adapter
• Clamping bracket
• Mounting support

Management & Controls

• Autonomous management: DALI
• Light flux regulation: DALI 2.0, 0–100% dimming
• Dim-to-off: Yes
• Optional built-in CLO system

Warranty
5-year warranty as indicated on the product sheet (see manufacturer terms).

Technical specifications — summary

• Model: FlexCore
• Brand: MS LUX
• Power range: 50–400 W
• Luminous flux: 7,500–62,000 lm
• Efficiency: up to 155 lm/W
• CCT: 5000K (3000K / 4000K options)
• CRI: >70 (80/90 options)
• Control: DALI / DALI 2.0; 0–100% dimming; dim-to-off
