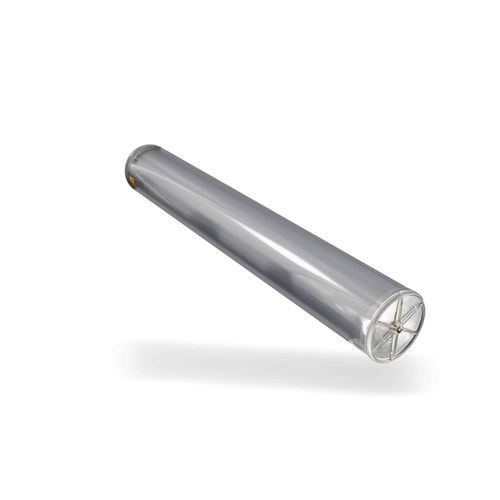

LED bulb DL-SEAL

Product description
DL-SEAL is a linear light fitting designed to illuminate humid areas such as docks, occasionally flooded underground spaces, livestock farming zones requiring cleaning and similar harsh environments. Two variants are available: a standard model and an emergency model with an autonomous function up to 1.5 hours after mains loss.

Construction and protection
SEAL is made of non-corrosive materials: PMMA, ABS, PC, PA6 and stainless steel. The luminaire is watertight with an elastic construction resistant to corrosion and water jets. Mechanical protection ratings and relevant certifications cover demanding environments.

Applications

• Shipbuilding
• Industry
• Sports pitches and courts

Basic features

• Next-generation LED technology with very high efficiency
• Reduced energy consumption versus traditional technologies
• Light quality Ra > 80 for improved visibility and safety
• High driver efficiency and high power factor
• Service life > 100,000 hours
• Minimal maintenance cost
• Certifications: CE, ENEC, RoHS (page also references IP66 and IK09)
• No UV emission

Electrical characteristics
Light fitting type: 650-230-25 | 1250-230-25
Nominal voltage: 230 VAC / 50-60 Hz | 230 VAC / 50-60 Hz
Operating voltage: 100 - 305 VAC / 110 - 430 VDC | 100 - 305 VAC / 110 - 430 VDC
Total power: ~25 W | ~55 W
Power factor: >0.97 at 230 VAC | >0.97 at 230 VAC
Operating temperature: -20°C to +50°C | -20°C to +50°C

Light characteristics
Luminous flux: 3,000 lm (standard); minimum 450 lm in emergency mode | 6,500 lm; minimum 450 lm in emergency mode
Emergency lighting: 1.5 h autonomy, 8 h charging time, NiCad battery (applies to emergency model)
Luminous efficacy: ~120 lm/W (typical)
CCT: ~5000 K
CRI: 80 - 85
Beam angle: 120°

Mechanical characteristics and protection
Mechanical protection: IP67, IK10 (page also references IP66 and IK09 in feature badges)
Electrical protection: OVP, OTP
Protective cover: PMMA 2.5 mm
Removable cover: Polycarbonate 2.5 - 3 mm
Housing materials: PMMA, PA6, PC, ABS
Seal: Silicone gasket
Connecting terminal range: 6 - 13 mm
Mass: 2.1 kg (650 standard) / 2.5 kg (650 emergency) | 3.5 kg (1250 standard) / 3.9 kg (1250 emergency)
Dimensions (overview): Length 650 mm or 1250 mm; Body ø90 mm; Outer ø105 mm; depth/height per detailed table below.

Dimensions (detailed)
Models: 650 / 650 EM | 1250 / 1250 EM
A (length): 650 mm | 1250 mm
B (body diameter): ø90 mm | ø90 mm
C (outer diameter): 105 mm | 105 mm
D (mounting span): 400 - 550 mm | 1000 - 1150 mm
E (mounting holes): 2 x ø6 mm | 2 x ø6 mm

Notes on variants
Two main variants: standard DL-SEAL (example 3,000 lm, ~25 W) and emergency DL-SEAL with integrated battery and up to 1.5 h autonomy.

Certificates / Approvals
Certificates referenced: CE, ENEC, RoHS and mechanical/electrical ratings such as IP66 / IP67 and IK09 / IK10.

Caractéristiques / spécifications techniques

• Model name: DL-SEAL
• Types: 650-230-25 and 1250-230-25
• Nominal voltage: 230 VAC / 50-60 Hz
• Operating voltage: 100 - 305 VAC; 110 - 430 VDC
• Total power: ~25 W (650) or ~55 W (1250)
• Luminous flux: 3,000 lm (650) / 6,500 lm (1250); min. 450 lm in emergency
• Emergency autonomy: 1.5 h (NiCad), 8 h charge
• Efficacy: ~120 lm/W
• CCT: ~5000 K; CRI: 80-85
• Beam angle: 120°
• Mechanical protection: IP67; IK10
• Protective cover: PMMA 2.5 mm; removable cover: PC 2.5 - 3 mm
• Housing: PMMA, PA6, PC, ABS; seal: silicone
• Connecting terminal: 6 - 13 mm
• Mass: ~2.1 / 2.5 kg (650 std / em) — ~3.5 / 3.9 kg (1250 std / em)
• Dimensions: length 650 or 1250 mm; body ø90 mm; C = 105 mm; D = 400–550 mm (650) or 1000–1150 mm (1250); E = 2 x ø6 mm
