2 person team shelter BETA - 8

14 personpolycarbonatealuminum

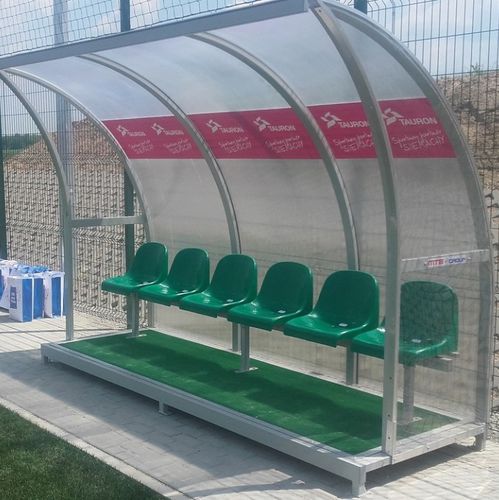

Team shelter for players Beta, for 2-14 players, plastic seats, polypropylene with a backrest height of 32 cm and a double backrest wall or wood bench, fastened to the steel beam from the 60x40 mm profile. The seat profile is attached directly to the shelter carrying frame, which enables the load to be transferred evenly during use, to the ground - it reduces the tension of the arches and polycarbonate, so that the fastenings of the cover are not damaged. Cover of shelter made of a solid polycarbonate with a thickness of 3 mm. Solid polycarbonate is attached to the steel structure using special aluminum profiles with a gasket (preventing polycarbonate cracking and sealing function) and angles. The structure of the support frame is made of steel profiles, closed 80x40 mm, 60x40 and 40x40 mm. The filling of the platform is: option 1 - waterproof plywood 18 mm, covered with artificial grass, option 2 - aluminum sheet, grooved, thickness: approx. 3 mm. Finished with an aluminum flat bar 30x3 mm. Shetler bows (cold bent) and upper crossbar made of 60x30 mm profiles. The whole steel structure is powder painted or hot-dip galvanized. The team shelter frame has plates that enable fixing to the ground. The shelter with a platform. Construction Steel, solid polycarbonate Seats Plastic
