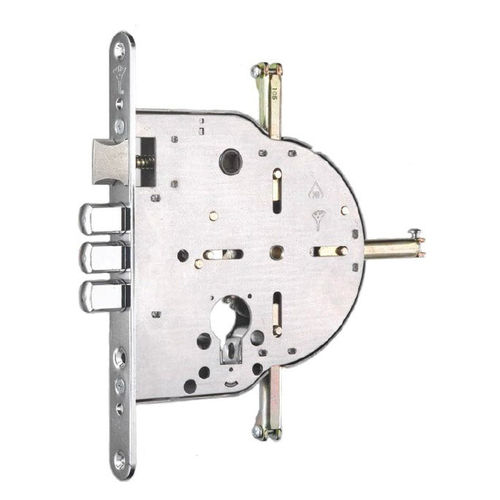

Security cylinder lock 4-WAY 603
Add to favorites
Compare this product
Characteristics
- Applications
- security
Description
Application
Installed inside wood or metal doors to provide 4-way multi-bolt locking.
Operation
360˚ key rotation for deadbolt action
Additional travel for latch action
Right- or left-hand application
Options
Hardware colors: White, Brown, Shiny brass, Nickel chrome, Gold
Fixed outside handle
Materials
Case and mechanism: steel
Bolts: steel (optional hardened)
Cylinder protector: hardened steel
Additional features
Patented 18 mm Double D shaped bolts allow installation in narrow frames, and enables the use of front plate (22 mm width) to fit regular steel door types.
Standards
ISI technical specification 196; EN12209
