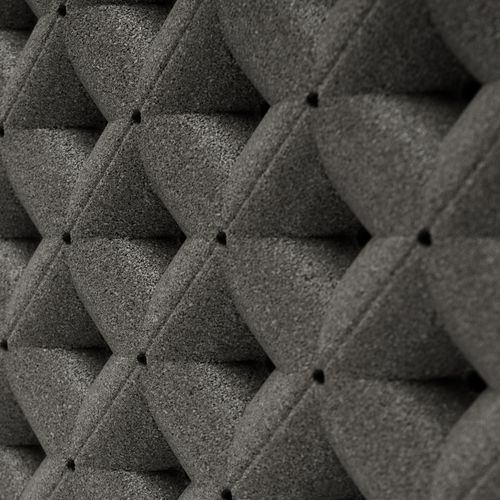

Besides having a high aesthetic impact, the UNDERTONE was specifically developed as an acoustic panel. Its design was technically prepared to dissipate sound waves, through the rounded shapes and numerous holes. Although UNDERTONE’S main aim is to insulate sound, its design is contemporary and appealing and displays beautiful light and shadow effects.
SIZE
491 x 491 x 30 mm
INSTALLATION
glue / clips (ask for more information)
MATERIAL Massive cork pieces agglomerated with special resins and
additives, molded in shape with mass color pigmentation.
SIZE 491 x 491 x 30 mm
FIRE RESISTANT B-S1,d0 (En13823)
ACOUSTIC (NRC) 0,7
THERMAL CONDUCTIBILITY (W/M.C) 0,0468 (EN 12667-2001)
THERMAL RESISTANCE (M2C/W) 0,47 (EN 12667-2001)
VOC class A (French Norm EN ISO/IEC 17025)
