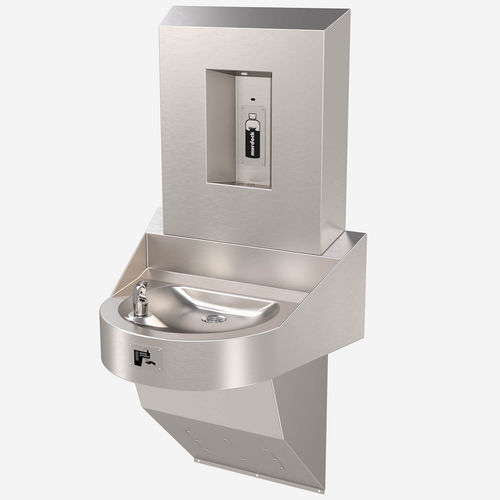

Drinking fountain with electronic control M-DFBF Series

handicappedcontactlesswall-mounted

Heavy Duty, Barrier-Free, Wall Mount Drink Fountain with Concealed Sensor and Sensor Activated Bottle Filler The drinking fountain shall be activated by a 9-volt infrared sensor concealed beneath basin skirt for wave-on and wave-off operation. Bubbler shall deliver a 0.3 GPM flow with a maximum run time of 10 seconds. Flexible or stainless steel drinking fountain bubblers are available. Fountain to include an integral D-shape basin with grid strainer, waste piping, and P-trap waste fitting. Bottle Filler shall be provided with sensor-operated control with a 20-second maximum run time. Sensor solenoid valve assembly to include a 120VAC Plug-In Transformer. An optional Battery Operation is also available. An enclosure is provided to conceal the P-trap and solenoid valve assembly. Drinking Fountain, Bottle Filler, and Trap Enclosure to be constructed of heavy gauge type 304 stainless steel with exposed surfaces polished to a #4 satin finish. Unit to conform with ANSI, UFAS, and ADA accessibility standards, when installed properly. Unit shall conform with ANSI A117.1, Public Law 111-380 (NO-LEAD), CHSC 116875, and NSF/ANSI 61, Section 9. Drinking Fountain Hands-free sensor with wave-on/wave-off operation Child or adult ADA compliant -when properly installed Sensor with a maximum run time of 10 seconds or less Lead-free 100-mesh inlet strainer Bottle Filler Hands-free sensor activation ADA compliant - reach requirement 120VAC/9VDC plug-in transformer Laminar flow water supply to reduce splashing 1 gallon (3.78 liters) fill rate Sensor has 20 seconds maximum run time
