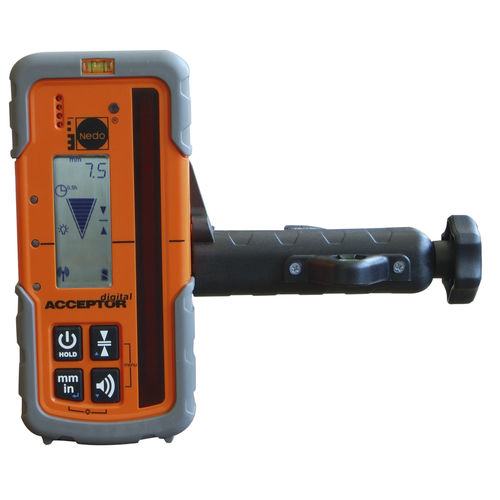

Construction site receiver ACCEPTOR DIGITAL

precisionruggeddata

Features: Large LC display on front and back Displays height difference between laser level and zero line in mm 2 different zero positions can be selected Size of directional arrow is proportional to difference in height Features an extra large 127 mm receiver field 5 accuracy modes Audible signal can be switched off Hold function keeps a value on the display Automatic swich-off Extremely robust, IP 67 Easy to handle Display of remaining battery power Bubble for easy alignment Rod clamp for laser receiver Technical data: Sensitivity coarse/fineswitchable, switchable, ± 0.5 mm, ± 1.0 mm, ± 2.0 mm ± 5.0 mm, ± 10 mm Length of detector field127 mm Working range (radius)approx. 450 m (depends on laser) Protection classIP 67 Power supply2 x 1.5V AA Operation durationapprox. 60 h
