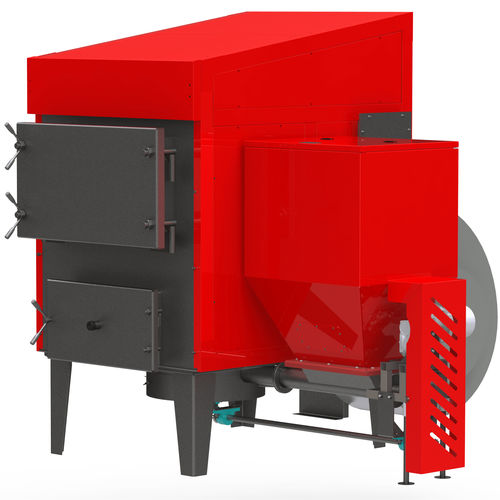

Hot air generator with automated process. Three-pass heat exchange on the exhaust gases. Thanks to the universal retort cast iron burner, the following fuels can be used: coal, wood pellets, agro pellets.
Air Generator Body
Fuel hopper
Cast iron retort burner
Fuel feeder
Automated combustion process control
Powerful heat exchanger fan
Automatic control of the combustion process.
Control of the heat exchanger fan according to the room temperature.
Universal retort burner. Features:
The possibility of burning different types of fuel (wood pellets, coal, agropellets).
A stirring mechanism that prevents slag formation.
Sturdy cast iron burner body.
Long service life and easy maintenance.
Maximized heat exchanger surface due to tube heat exchanger.
Maximizes the combustion chamber for maximum utilization of the heat released.
The hopper is mounted on the side of the generator.
Airtight lid closing
Built-in screen to prevent large pieces of fuel from falling.
Convenient doors with large overall dimensions make it easy to clean and maintain the generator.
High temperature mineral wool 100 mm thick.
The controller monitors and regulates the temperature in the body of the generator.
Additional thermostats control the heat exchanger according to the temperature in the generator and theroom temperature.
The combustion sensor stops the fuel supply to the burner if the optimum temperature in the generator is exceeded.
