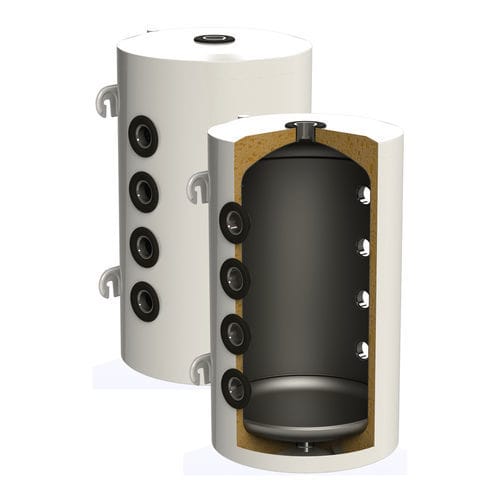

Buffer tank PSM

For the accumulation of hot or cold heat transfer medium generated by a heat pump. It can also be used in heating installations as a buffer tank. Performing the role of both batteries and hydraulic equalizer, prevents frequent switching on and off of the heat pump. As well as a proportional hydraulic load between the different circuits of the system. Energy efficiency Aesthetic PVC lining Easy installation Compact overall dimensions Electrical kit with optional power Insulation – Hard PU and outer steel sheathing with powder coating – RAL 9003. Water container – Made of low carbon steel S235JR. Working pressure – 6 bar. Operating temperature range – 7 – 95оС Conclusions – From 4 to 10 pcs. 1 ½ “terminals to bind to installations. The connections are 180 degrees, and there are 1 pcs. additional leads on top and bottom. Installation – The models of 30 and 50 liters are intended for wall mounting and the models of 80 and 100 for both wall and floor. In addition, there are additional legs that are mounted on the bottom. Directive 2010/30 / EU, Regulation 812/2013: Class C
