Galvanised steel raised floor pedestal

acousticimpact-resistantindoor

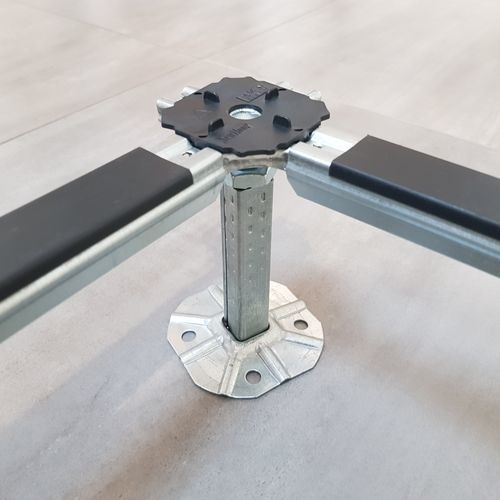

With a head designed specifically for Newfloor, SNF is the structure most frequently used. It is made of galvanised steel, with various heights ranging from 35 to 1.025 mm. The pedestal system is composed by 2 elements, the head and base. In certain installations, the system can be completed with stringers connecting the pedestals. There are three types of stringers: L, light of height 15/18 mm open section; M, medium of height 30 mm open section; H, heavy with closed section of dimension 25x25 mm. All parts of the SNF structure are galvanised using the Sendzimir process. The structure is completed with plastic gaskets placed in contact with the panel that have a sound-proofing and shock-proofing function.
