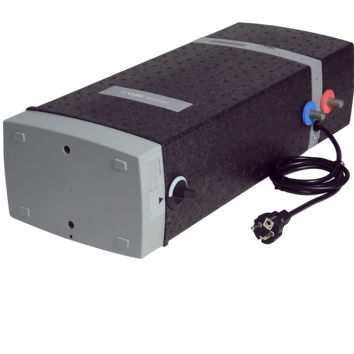

Electric water heater NIBETTE 5

built-inundersinkhorizontal

Product overview
The NIBE NIBETTE 5 is a compact electric water heater designed to supply immediate hot water for small demands, such as kitchens, small holiday homes and cottages. It can be installed behind skirting boards or inside kitchen cupboards and is compatible with heat pump systems where limited hot water circulation is required. The unit features environmentally friendly foam insulation and supports both horizontal and vertical mounting for flexible installation.

Key features

• Compact capacity: 5.5 L tank for near-instant small hot-water needs
• Flexible installation: supports horizontal and vertical mounting (under-sink or concealed locations)
• Low standby loss: insulated with environmentally friendly foam for reduced heat loss

Performance & operation
The water tank volume is 5.5 litres. With a heating power of 2.2 kW the tank reaches approximately 45°C in about 7 minutes and approx. 80°C in about 13 minutes. The unit is intended for localized instantaneous hot water supply and situations requiring a compact installation footprint. Suitable for use in combination with heat pumps where hot water circulation is present.

Technical specifications

• Model: NIBETTE 5
• Capacity (water tank): 5.5 litre
• Output / power: 2.2 kW
• Heating time: approx. 7 minutes to 45°C; approx. 13 minutes to 80°C
• Height (mm): 147
• Width (mm): 545
• Depth (mm): 224
• Net weight (kg): 5
• Installation: horizontal or vertical
• Insulation: environmentally-friendly foam
• Efficiency class (water heating): A
• Declared tap profile: XXS
• Intended use: small kitchens, holiday homes, cottages; can be combined with heat pump systems where hot water circulation is required
