Gravel grass grid NGR65

recycled plasticlow-density polyethylene

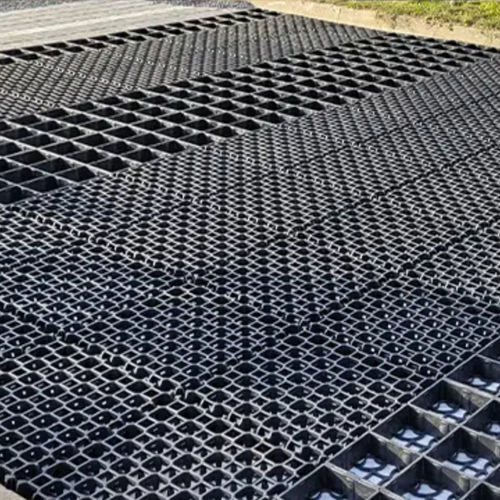

The Ocity NGR65 cellular slab stabilizes gravel and grassed surfaces while preserving soil permeability and promoting deep grass rooting. Its open honeycomb structure provides mechanical strength, uniform load distribution and natural rainwater infiltration, making it suitable for driveable and landscaped urban areas.

Applications :

• Urban parking areas
• Driveways (light vehicles, occasional)
• Pathways and pedestrian areas
• Gravel stabilisation for parking and circulation zones
• Fire access routes and utility lanes

Material & Manufacturing :

• Material: 100% recycled & recyclable LDPE
• UV-resistant finish
• Manufactured in France

Key benefits :

• Open-cell honeycomb design promotes three-dimensional root development for dense anchoring of grassed areas
• High mechanical strength for gravel infill and light vehicle loads
• Reduces gravel displacement and ensures uniform load distribution
• Fully permeable: promotes natural rainwater infiltration and reduces runoff
• Lightweight format facilitates handling and rapid installation
• Environmental commitment through use of recycled and recyclable materials

Installation (summary) :

• Excavate and check subgrade permeability; provide safety drainage if permeability is insufficient
• Install anti-contamination geotextile
• Prepare a load-bearing, draining foundation layer according to subgrade
• Stabilise edges with borders and compact in successive layers
• Prepare a screeded and compacted bedding layer
• Lay slabs progressively according to the layout; place fixings in the direction of progress
• Cutting: possible around edges but avoid cuts in trafficked zones when possible
• After installation, fill cells with appropriate infill (grass, gravel or mixed solutions; compatible with PAV65 for paved tracks)

Technical characteristics / specifications :

• Model name / designation: Ocity NGR65
• Product type: Cellular slab for grassed surfaces and gravel stabilisation
• Size: 500 x 500 mm
• Height: 65 mm
• Coverage per slab: 0.25 m²
• Material: 100% recycled & recyclable LDPE
• Finish: UV-resistant
• Manufacturing origin: Made in France
