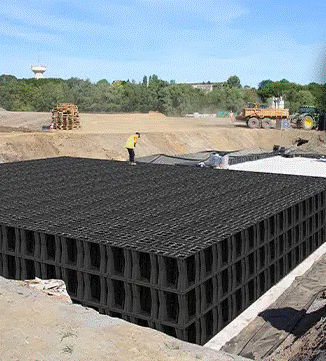

Basin stormwater management module OPTIBOX

for public worksinfiltrationin-ground

Product overview
The Optibox system is a modular SAUL-type unit providing three-dimensional water diffusion for temporary storage and controlled release of stormwater. With a 95% void ratio, Optibox modules enable underground public or private installations that are inspectable and suitable for hydro-cleaning.

Use / Applications

• Infiltration basins
• Retention basins
• Drainage trenches
• Fire reserve tanks
• Controlled discharge and stormwater management

Material & Manufacturing
Material: Recycled and recyclable polypropylene
Manufacturing: Made in France

Key benefits

• Modular design composed of two elements (module and side plate) to simplify transport, storage and installation
• Three-dimensional diffusion allowing inspection of the basin in all directions and at every level
• Self-locking assembly without clips for rapid and secure installation
• Integrated handling grips for easier manipulation on site
• Rounded corners to reduce the risk of membrane tearing in watertight configurations

Features (dimensions)
Size (footprint): 1200 x 600 mm
Height: 660 mm
Module volume: 0.48 m³

Notes / Technical specifications

• Void ratio: 95%
• Function: temporary stormwater storage; collect, store and release stormwater by infiltration and/or controlled discharge
• Three-dimensional diffusion within modules (SAUL-type)
• Module size: 1200 x 600 mm
• Module height: 660 mm
• Module volume: 0.48 m³
• Material: recycled and recyclable polypropylene
• Manufacturing origin: Made in France
• Assembly: self-locking system without clips; integrated handling grips
• Inspection: accessible for inspection and hydro-cleaning via linear channel (350 mm) and creation of inspection shafts
• Design consideration: rounded corners for membrane protection in watertight installations
