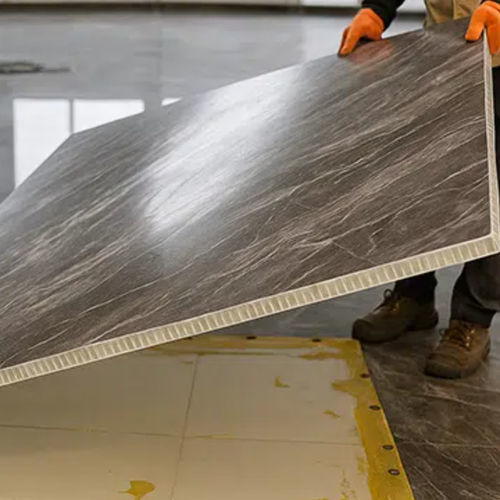

Polypropylene honeycomb core NIDAPAN

for sandwich panelsreinforcedlightweight

Nidapan is a reinforced polypropylene honeycomb core designed for bonded sandwich panels and for ready-to-use rigid or lightweight panels. Its coated surface allows lamination or bonding of various facings for construction, transport, marine, industrial equipment, sport and leisure applications.

Key applications

• Construction
• Transport
• Marine industry
• Industrial equipment
• Sport and leisure

Construction & materials

• Honeycomb structure in polypropylene with approximately 95% void for a high stiffness-to-weight ratio
• Reinforcement facing: 602 g/m² glass/PP composite
• Adhesion layer: polyester non-woven 45 g/m² to bond the finishing skin
• Core material: 100% recyclable polypropylene

Dimensions & weight

• Panel size: 2500 × 1220 mm
• Available thicknesses: 5 mm, 10 mm, 15 mm, 20 mm, 25 mm, 40 mm, 50 mm, 60 mm, 70 mm
• Cell size: 8 mm
• Indicative weight (20 mm): 2.6 kg/m²

Manufacturing

• Manufactured in France

Technical specifications

• Product name: Nidapan
• Panel dimensions: 2500 x 1220 mm
• Thicknesses available: 5, 10, 15, 20, 25, 40, 50, 60, 70 mm
• Cell size: 8 mm
• Reinforcement facing: 602 g/m² (glass/PP composite)
• Adhesion layer: polyester non-woven 45 g/m²
• Indicative weight (20 mm): 2.6 kg/m²
• Core material: 100% recyclable polypropylene (approx. 95% void)
• Manufacturing origin: France
