Polypropylene honeycomb grid NIDAPLAST 8

recycled plasticlightweightrecyclable

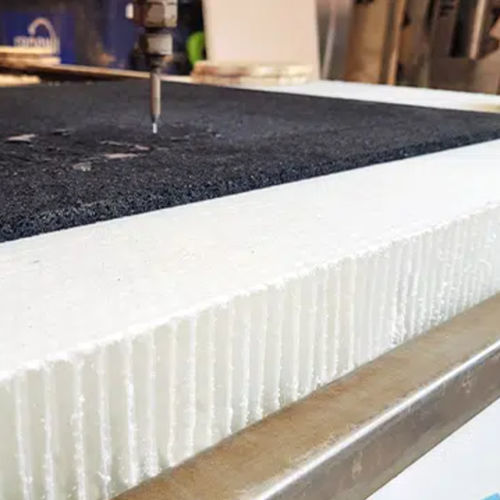

Nidajet is a honeycomb sacrificial plate designed as a support for parts on CNC waterjet cutting machines, ensuring stable positioning and improved cutting quality.

Main applications:

• Support for parts during CNC waterjet cutting

Key benefits:

• Clean and precise cutting: honeycomb structure channels the waterjet to limit splashes and rebound, improving cut accuracy
• Easy installation and handling: lightweight panels, simple to position and to cut to size on site
• Robustness and reliability: higher resistance than traditional cutting bricks; homogeneous surface prevents part movement
• Durable performance: honeycomb geometry increases stability and lifespan under repeated cycles
• Repairability and maintenance: panels are easy to repair and clean, extending service life

Documentation & media:

• Product sheet and technical datasheet available (links on the manufacturer site)
• Video: Nidajet — demonstration / presentation

Characteristics / technical specifications:

• Usage: waterjet cutting support
• Material: recycled and 100% recyclable polypropylene
• Manufacture: Made in France
• Standard panel size: 2500 x 1220 mm
• Available heights: 40 mm, 60 mm, 100 mm
• Panel area (standard): 0.96 m²
• Availability: in stock
