Prefilter CY202

Product overview

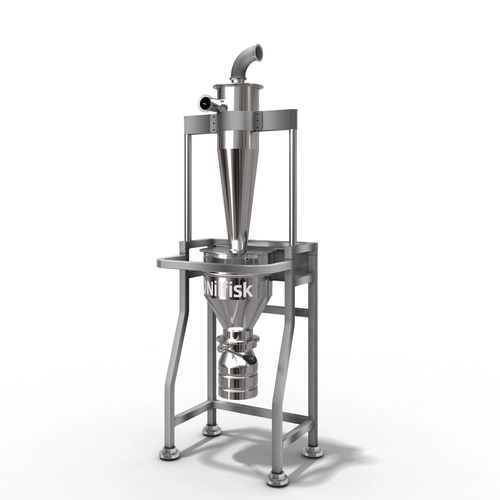

The CY202 filterless pre-separation unit from Nilfisk is designed to operate with DCU220 and DCU220WIP systems to provide contamination-controlled pre-separation of powders and dust. It supports airflow up to 650 m3/h and integrates an AISI 316L stainless-steel cyclone with a 30 L hopper and contamination-free dust bag discharge.

Key features

• GMP conformity
• Reduced maintenance and consumable costs thanks to filterless design
• OEB5 during operation, OEB4 during maintenance
• FAT and SAT commissioning support
• Suitable for ATEX environments and combustible dust classes St1, St2
• Collected material discharged into contamination-free dust bag
• 30 L hopper capacity
• AISI 316L stainless-steel cyclone
• Optional Wash-In-Place (WIP)
• Optional sensors and alarms
• Ease of integration with DCU220 / DCU220WIP units

Included accessories

Technical specifications

• Model: CY202
• Manufacturer: Nilfisk
• Product number: 4072200610
• Type: Filterless pre-separation unit
• Compatibility: For use with DCU220 and DCU220WIP units
• Suitable airflow: up to 650 m3/h
• Hopper capacity: 30 L
• Cyclone material: Stainless steel AISI316L
• OEB rating: OEB5 during operation, OEB4 during maintenance
• ATEX / combustible dust: Suitable for St1, St2
• Collected material discharge: Contamination-free dust bag
• Options: Wash In Place (WIP), sensors and alarms
• Commissioning: FAT and SAT
