Steel cycle shelter Revet

for public spacefor urban areas

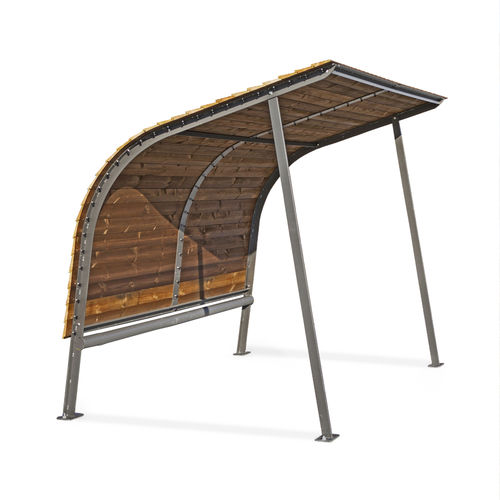

The Revet bike shed is a purpose-built enclosure with plenty of room for bicycles. This easy-to-assemble prefabricated structure is built with a durable wooden roof that curves downward to create a wall. Several structures can be combined side-by-side to create a longer shed. Revet offers a value-for-money bike shed with the potential to be extended according to specific requirements. Revet can also provide shelter for baby prams and outdoor equipment. Dimensions and weight Length: 2,7 m förlängningsbart i längder om 2,5 m Height: 2 m Depth: 1,9 m SINGLE SECTION Length: 270 cm Depth: 184 cm Height: 189 cm Number of parking spaces: 5 DOUBLE SECTION Length: 520 cm Depth: 184 cm Height: 189 cm Number of parking spaces: 10 MID-SECTION Length 250 cm Depth: 184 cm Height: 189 cm Number of parking spaces: 5 Pram roof, start section Length: 520 cm. Depth: 123 cm. Height: 205 cm. Total height: above ground 215 cm. Pram roof, expansion section Length: 250 cm. Depth: 123 cm. Height: 205 cm. Total height: above ground 215 cm. Materials The posts that form the rear supports and roof are made in 6 mm plate steel. The front supports are made in 8 mm plate steel. The steel parts are made from zinc-electroplated steel powder-coated in grey 2900 Sablé. The roof is made from Linax-impregnated pine measuring 120×22 mm. The bicycle rack is made from steel plate pipes with wheel holders made in zinc-electroplated solid steel. Variants The shelter can be extended according to requirements. Also available as a pram roof. Character Revet is a prefabricated value-for-money bicycle shelter with the potential to increase in size.
