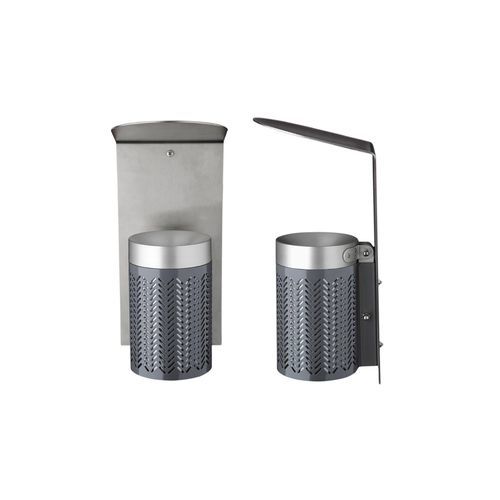

The sides of the cylindrical ZigZag ashtray are perforated with a repeating pattern of zigzag shapes, reducing its weight without compromising its volume. The dynamic zigzag motif for which it is named is also a means of representing movement on two-dimensional surfaces. The ashtray can be paired with the ZigZag litterbin. Together, the two have a wide range of combination possibilities.
Dimensions and weight
ASHTRAY
Diameter: 15 cm
Height: 24 cm
Height when attached to post: 80 cm
Weight: 2.5 kg
RAIN COVER
Overall height: 46 cm
Height above the ashtray: 22 cm
Width: 20 cm
INDIVIDUAL DIMENSIONS
The perforated sheet steel in the container is 1.25 mm thick
The stainless steel in the rain cover is 3 mm thick
The anodised aluminium in the lid is 1.5 mm thick
Assembly and placement
Some assembly required.
The attachable version bolts to the post and the post bolts to the surface. The bolt-holes have a diameter of 10 mm for 8 mm bolts. Bolts are not included.
The post for the ground-mounted version should be cast 40 cm below ground level.
The wall-mounted version should be bolted to the wall with wood screws or expander bolts.
Maintenance
Polyester powder-coated steel can be treated with alkyd oil enamel as needed.
Variants
ZigZag can be combined with the ZigZag litterbin or paired with a rain cover. ZigZag is available in a wall-mounted version or with an attachable post that fits into a freestanding concrete base or can be cast in concrete.
Character
The sides of this ashtray are perforated with a repeating pattern of zigzag shapes, reducing its weight without compromising the volume.
