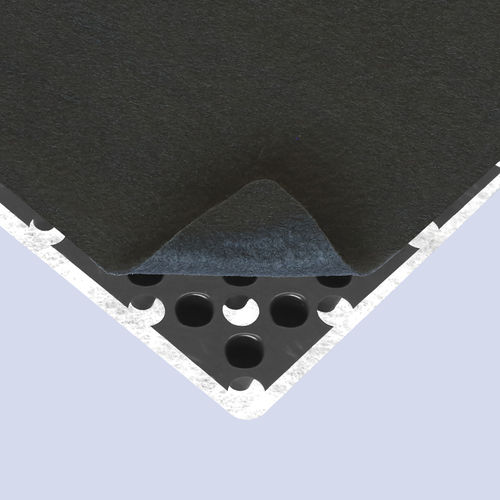

High-quality, CE-marked drainage system with a water reservoir for roofs with limited fall that are planted with extensive or intensive vegetation, or where extensive drainage lengths are required. The drainage system prevents the build-up of hydrostatic pressure on the waterproofing membrane, protects it against mechanical loads and ensures that vapour is able to evaporate freely from the XPS insulation on an inverted roof.
Dimensions approx. 20 m x 1.25 m
Packaging approx. 25 m², roll
Weight approx. 1,252 g/m²
Build-up height approx. 27.5 mm
Compressive strength approx. 480 kPa
Material dimpled sheet recycled, high impact polystyrene (HIPS)
Material geotextile filter polypropylene (PP) and propyethylene (PE)
Perforation /m² approx. 575, Ø 15.8 mm
Water reservoir approx. 5.8 l/m²
Drainage capacity i = 1 (20 kPa) 15.70 l/(s.m)
Drainage capacity 2 % fall (20 kPa) 2.14 l/(s.m)
CE hEN EN 13252
Applications
Nophadrain Extensive Green Roof System - roof with sufficient and limited fall - also suitable for inverted roofs
Nophadrain Intensive Green Roof System - roof with sufficient and limited fall - also suitable for inverted roofs
