Floor-mounted bike rack VERT-60

secureindoorinterior

Product overview

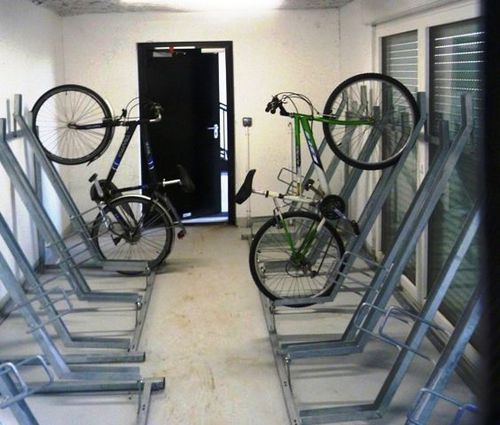

Inclined floor-mounted rack for semi-vertical bike parking. Approximately 60° incline: the wheel reception slots in a semi-vertical gutter rail are designed for the most common standard bicycles of about 170 cm in length (e.g., mountain bikes / trekking bikes). The gutter-shaped rail features a small lateral security hoop allowing attachment of a lock to the frame or the rear wheel depending on lock type.

Options & configuration

• Multiples of 3, 4, 5, 6, 7, 8, 9, 10 positions (any combination)
• Rail center-to-center: 30.5 cm (optionally 40 cm available)

Recommended use
VERT-60 is designed to optimize and maximize the number of parking spaces within an interior area. It is recommended for users aged approximately 15 to 60 and for parking bicycles without heavy loads (ideally bikes under 16 kg such as typical MTB or trekking/urban hybrid bikes).

Limitations
VERT-60° is not guaranteed compatible with all current bicycle lengths due to the fixed position of the wheel reception slots. The 30.5 cm rail spacing may make it difficult to accommodate bicycles equipped with panniers; in such cases VERT-60 should be combined with another product.

Technical characteristics / specifications

• Model: VERT-60
• Product reference: RAVERT60
• Type: inclined floor rack for semi-vertical bike parking
• Incline: approximately 60°
• Bicycle compatibility: standard bicycles ~170 cm (e.g., MTB / trekking / VTC)
• Rail: gutter-shaped with small lateral security hoop for lock attachment (frame or rear wheel)
• Capacities: configurable multiples from 3 to 10 positions (all combinations possible)
• Center-to-center between positions: 30.5 cm (40 cm option available)
• Recommended bike weight: ideally under 16 kg (bikes without heavy loads)
• Recommended user group: ages 15 to 60
• Constraints: may be incompatible with some bike lengths; limited use with bicycles fitted with side panniers
