Modular cycle shelter N°5-E-TEL - K

securethermo-lacquered steelzinc-coated steel

Description

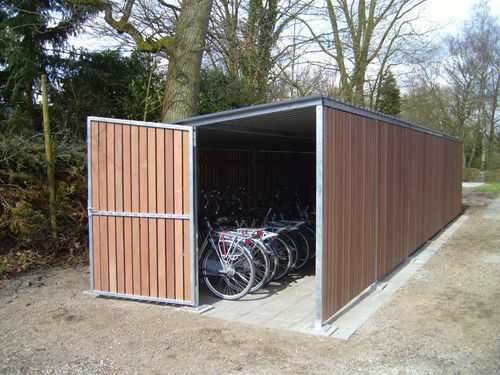

Discover the closed bicycle shelter NORCOR VÉLO Type N°5-E-TEL - K, an economical and secure parking solution. Fully enclosed on four sides to protect bicycles from weather and theft attempts. Fitted with a door and lock for enhanced security.

Materials and design
Hot-dip galvanized steel frame for corrosion protection. Side and rear cladding available in wood, mesh or Aluzinc steel panels. Flat sloped roof in Aluzinc with standard grey colour; RAL colour option available. Modular length design allows extension to increase capacity.

Finish and structure

• Finish options: GALVA or GALVA + THERMO LAQUAGE (RAL choice).
• Uprights: HEA / IPE 120 profiles.
• Diagonal braces: 40 x 40 mm square tube.
• Roof beams: 50 x 50 mm tube.

Options and modularity

• Side and rear cladding: Aluzinc steel tray or vertical exotic wood slats 95 mm section spaced 25 ±5 mm.
• Optional gutter and rainwater downpipe (Ø 60 mm - external to post).

Safety & compliance
Structure designed compliant with or exceeding DTU and Snow & Wind standard NV 65. Standardized components ensure proper management of thermal expansion, water drainage and fixings.

Ground fixing
Feet are fixed via baseplates onto concrete footings or a reinforced concrete slab (min. thickness 15 cm). Indicative suggestion for footings: min. depth 400 mm, width 250 mm. Civil engineering works to be organised by the client.

Technical specifications

• Product reference: ABR5TELK
• Model: Type N°5-E-TEL - K
• Type: closed bicycle shelter, fully enclosed on four sides
• Door: fitted with a lock
• Frame: hot-dip galvanized steel
• Finishes: GALVA or GALVA + THERMO LAQUAGE (RAL choice)
• Uprights: HEA / IPE 120 profiles
• Diagonal braces: 40 x 40 mm tube
• Roof beams: 50 x 50 mm tube
• Roof: Aluzinc steel tray, standard grey (RAL option)
• Cladding: wood (vertical slats 95 mm, spacing 25 ±5 mm) or Aluzinc steel tray or mesh
• Optional gutter/downpipe: Ø 60 mm (external to post)
• Main dimensions: front height 2.15 m (rear/center 1.83 m); minimum roof depth 2.40 m
• Safety: compliant with or exceeding DTU and Snow & Wind NV 65
• Fixing: baseplates on footings or reinforced concrete slab (min. thickness 15 cm); suggested footings min. depth 400 mm x width 250 mm
• Modularity: modular in length, extendable to increase bicycle capacity
